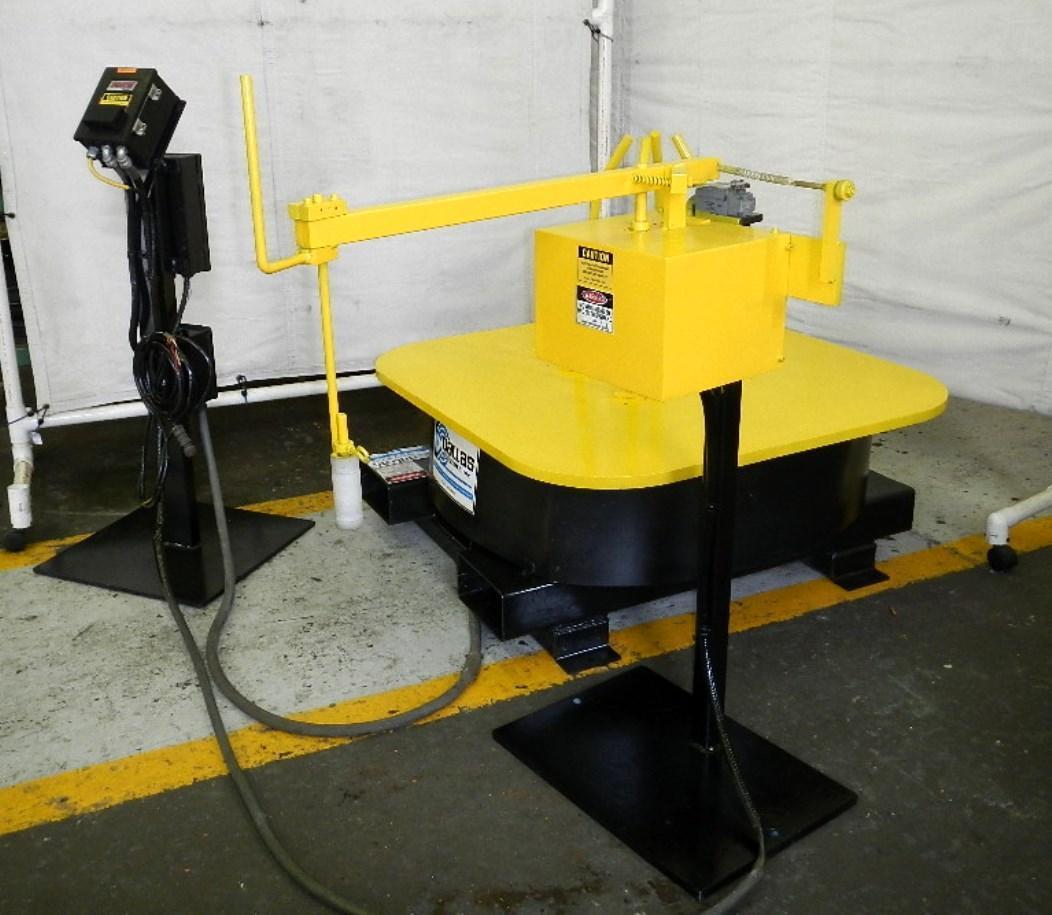

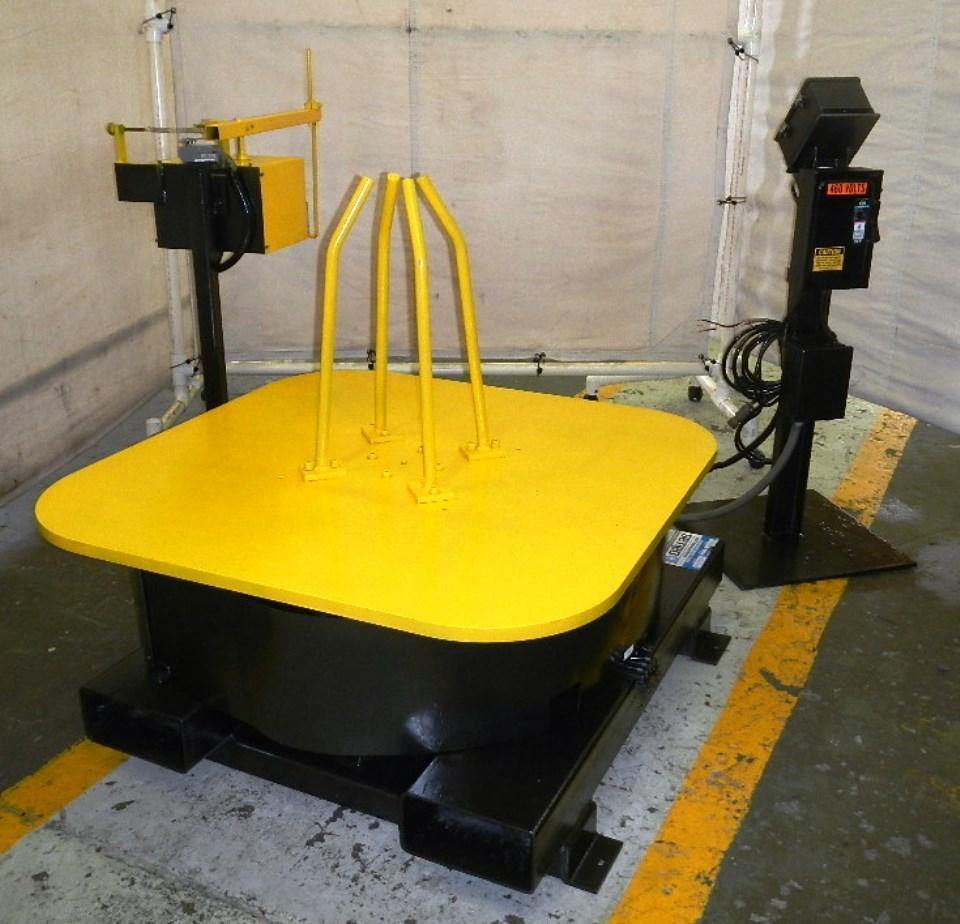

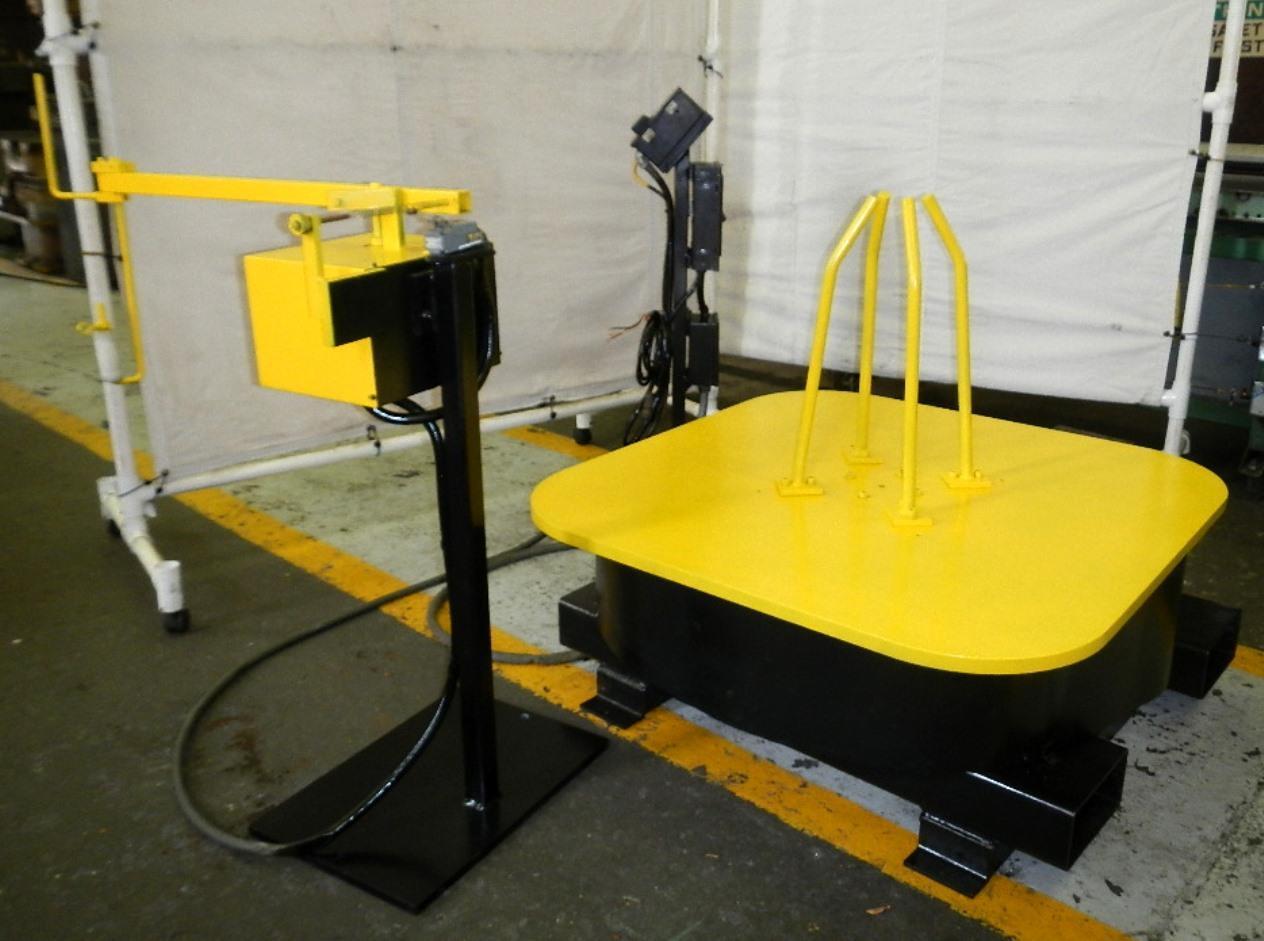

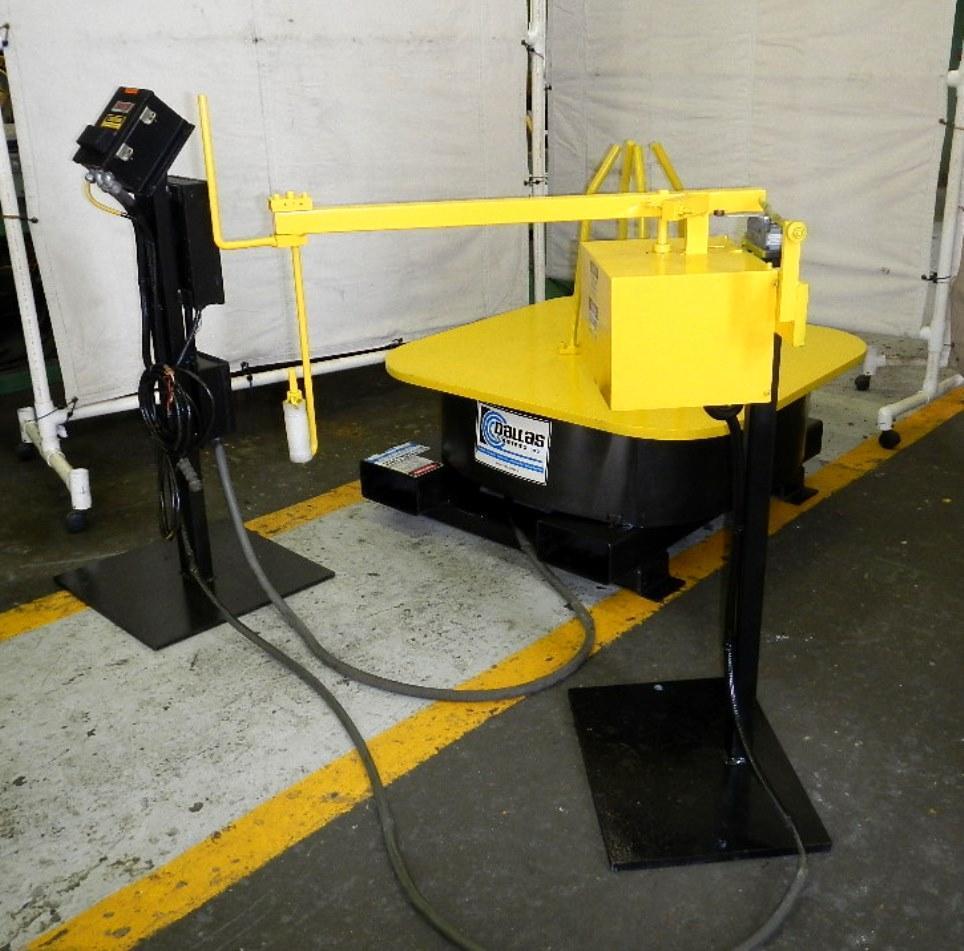

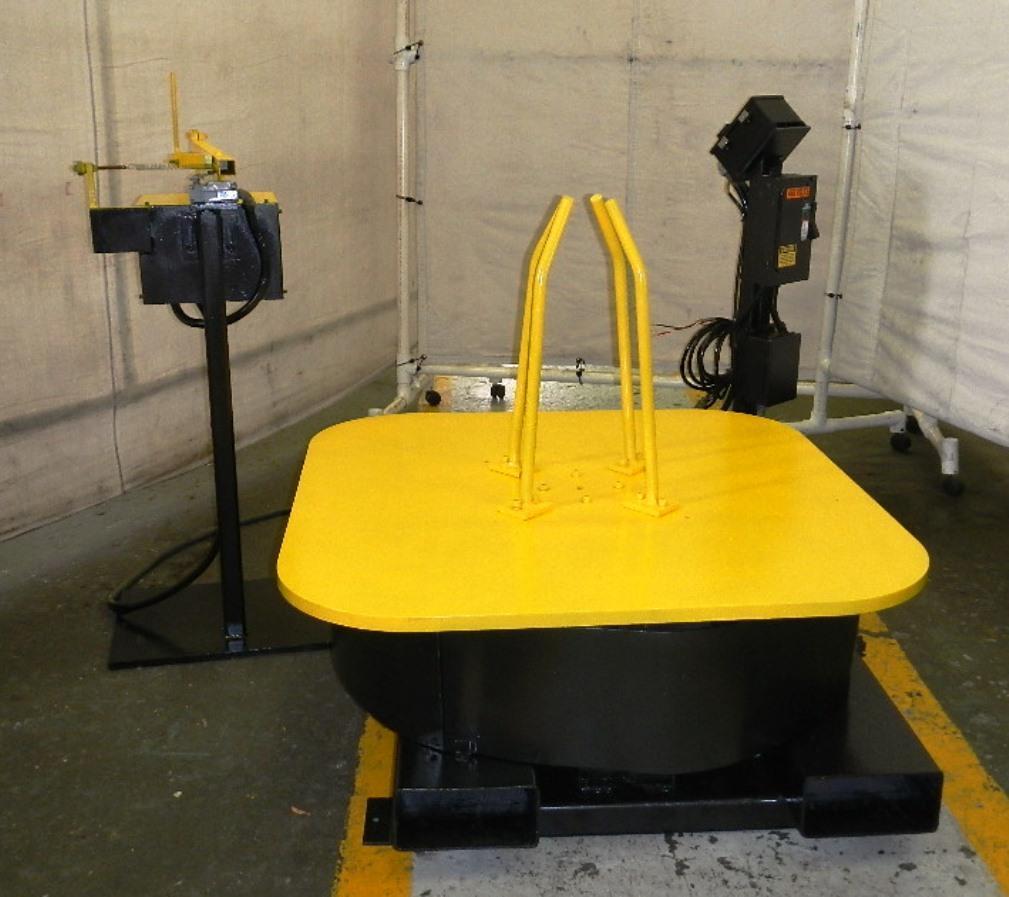

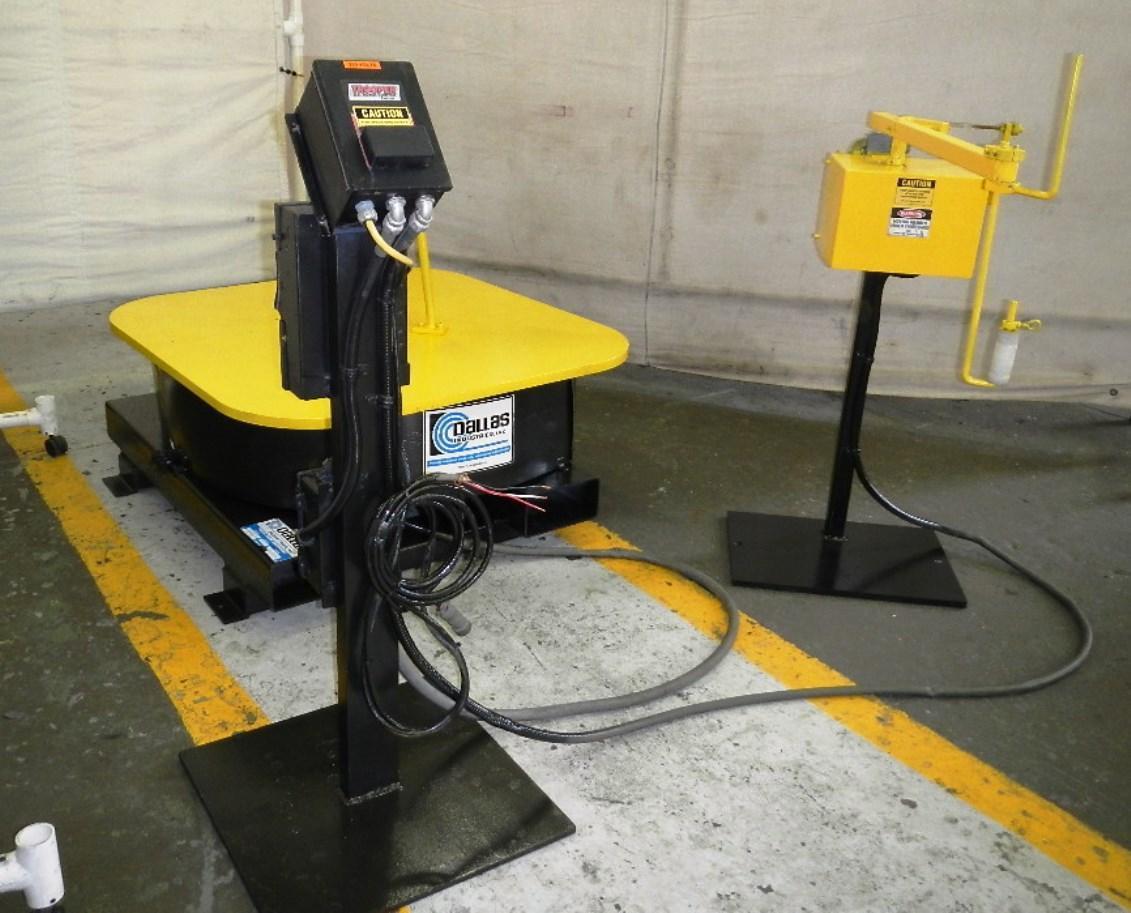

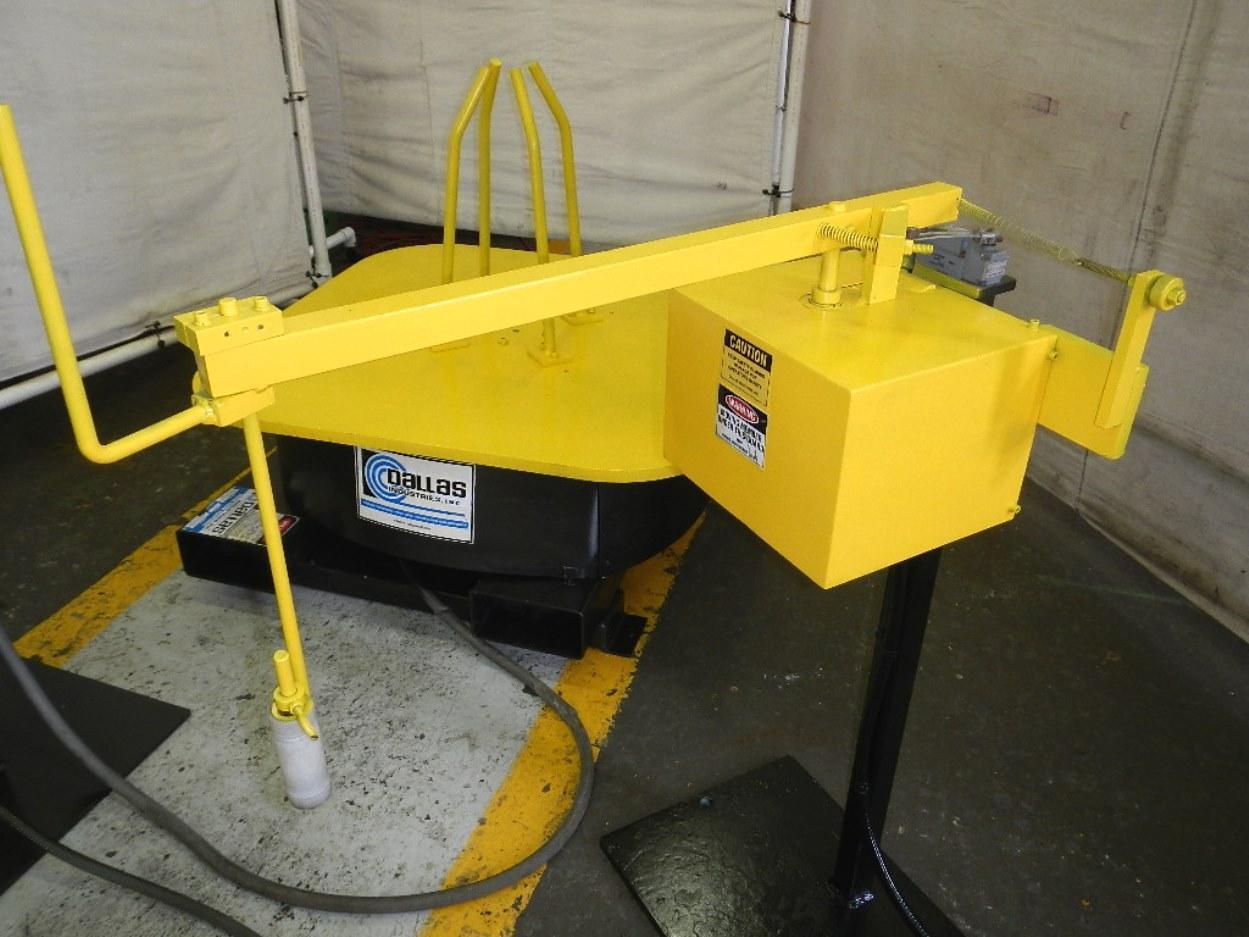

DALLAS MODEL DPU-4000#X48 PALLET TYPE UNCOILER
Capacity 4,000 lbs.
Max OD 48"
Platform size 48"
Speed 2 - 12 rpm (variable)
Floor to platform height 21"
Motor 2 HP
Voltage 220 / 440 (single phase)
Dimensions 50" x 48" x 54" high
Weight 3,000 lbs.
* Note: A very heavy duty design with 1 1/8" thick steel table plate.

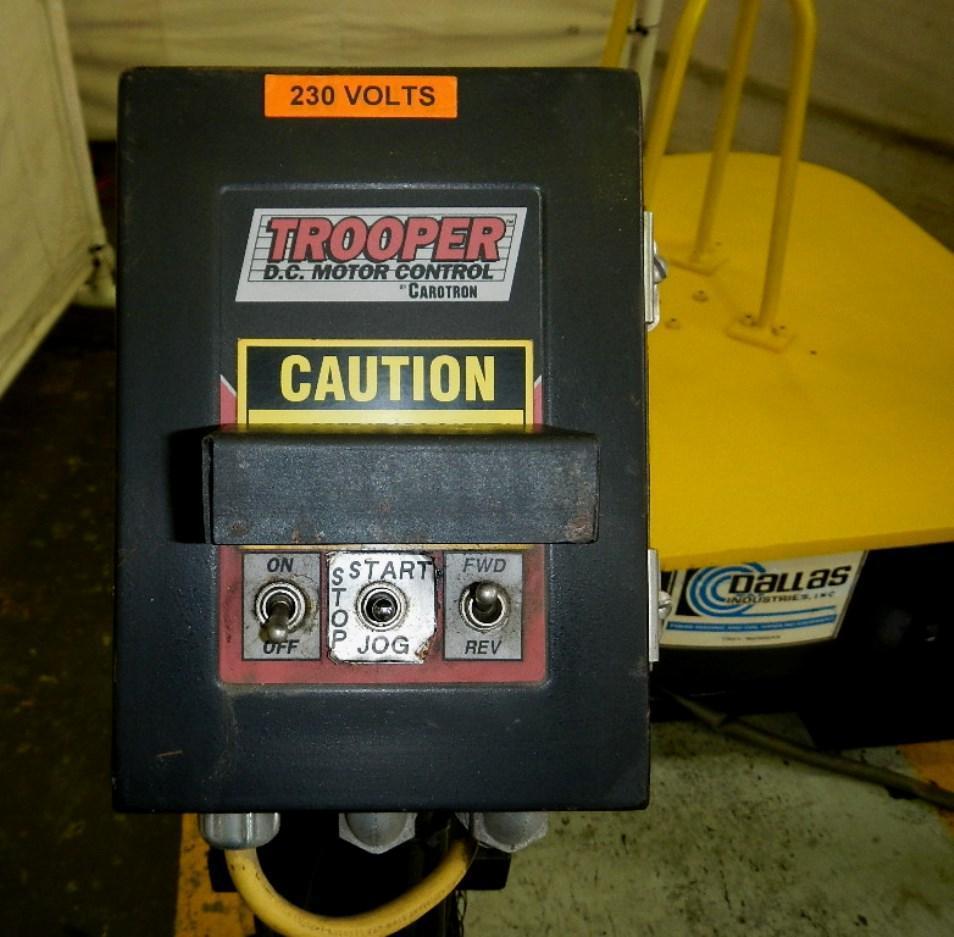

Machine is equipped with remote control stand w/ CW / CCW operation (forward / reverse), run / jog function, loop control on remote stand, bolt on ID guides, fork truck accommodations in the base, electrical schematics.
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
