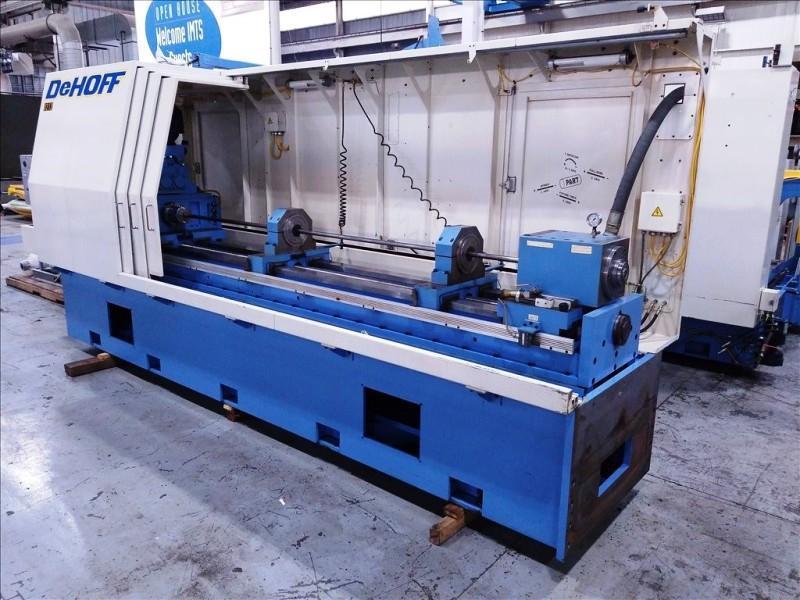

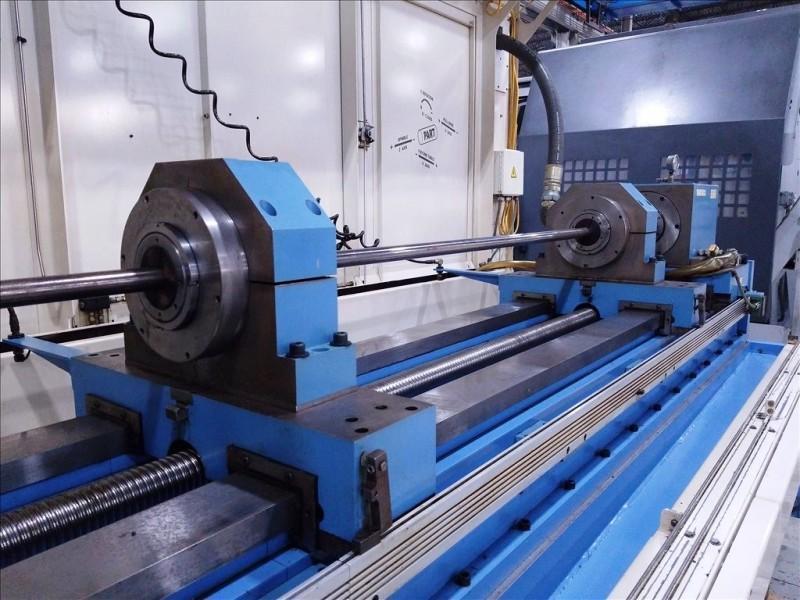

Drill Capacity:

3" (Steel)

Max. Part Length:

120"

Number of Drill Heads:

1

Number of Spindles:

1

Drill Head Stroke:

120"

Feed Rate:

0.1 IPM - 30 IPM

Rapid Retraction of Drill Head:

150 IPM

Max. Spindle Speed:

0 - 2000 RPM

Min. - Max. Part Diameter:

5" - 16"

Max. Part Weight:

6750 Lb.

Spindle Centerline Parallel to Slide Ways:

0.0005 in / ft

Face of Pressure Head Perpendicular to Spindle:

0.0005"

Spindle Runout:

0.0002"

EQUIPPED WITH:

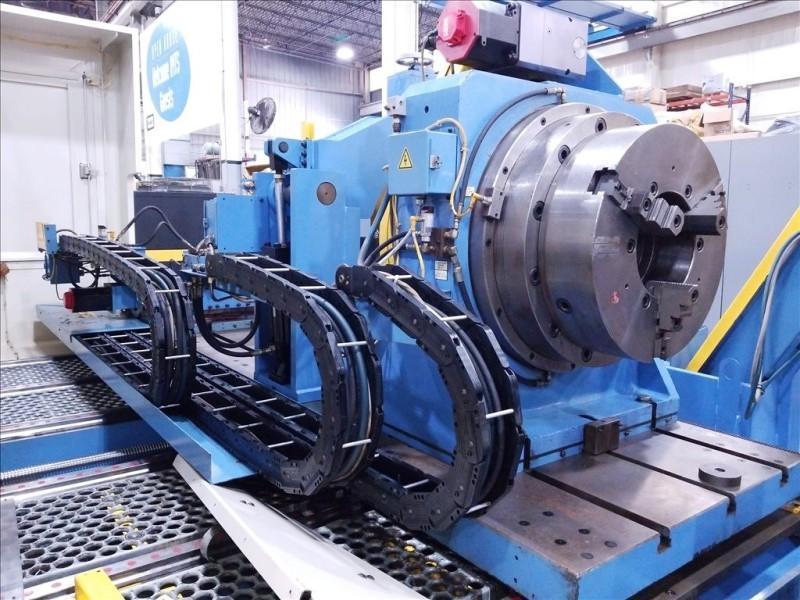

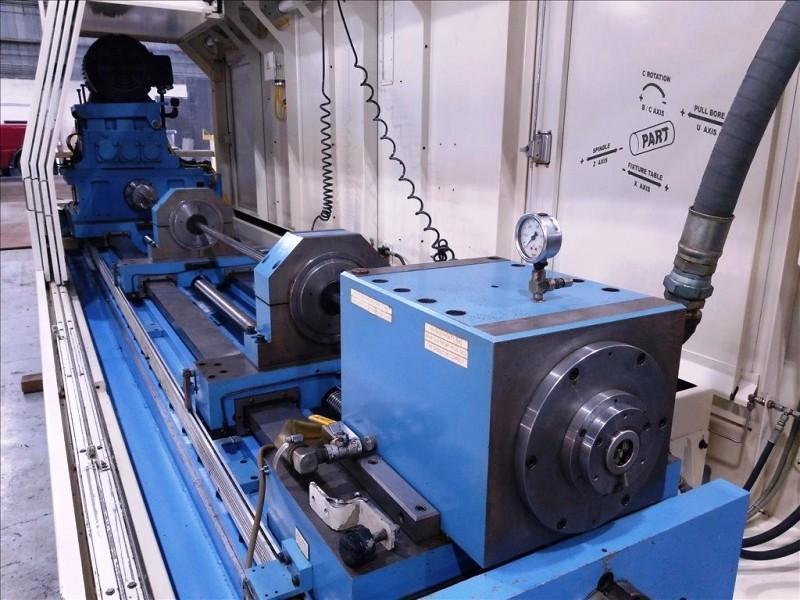

C Rotation B/C Axis

U Axis Pull Bore

X Axis Fixture Table

Z Axis Spindle

Pneumatic Lift Assist: Counter Rotation Assembly

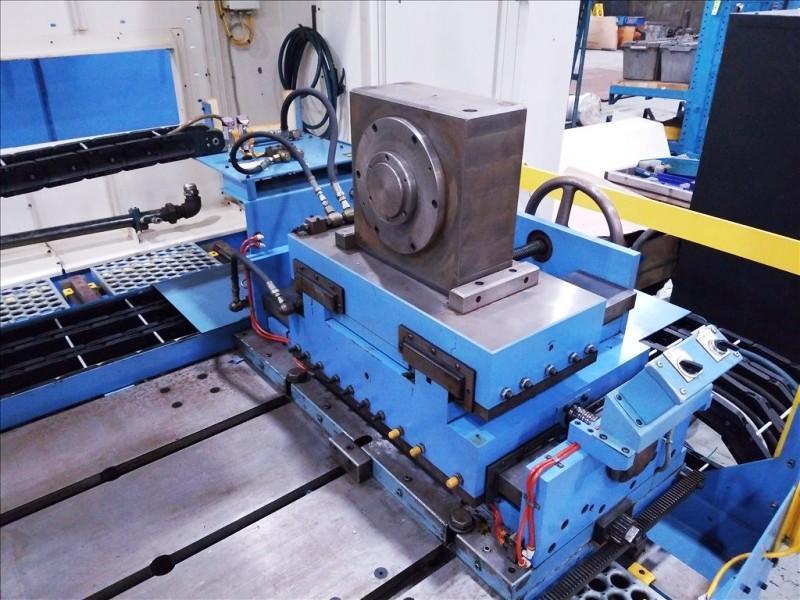

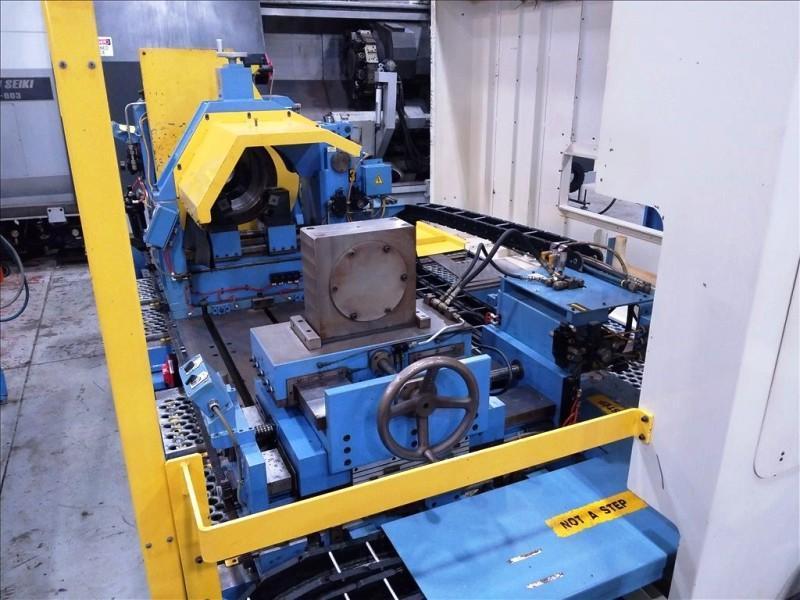

Part Steady Rest & U-Axis Fixture Table

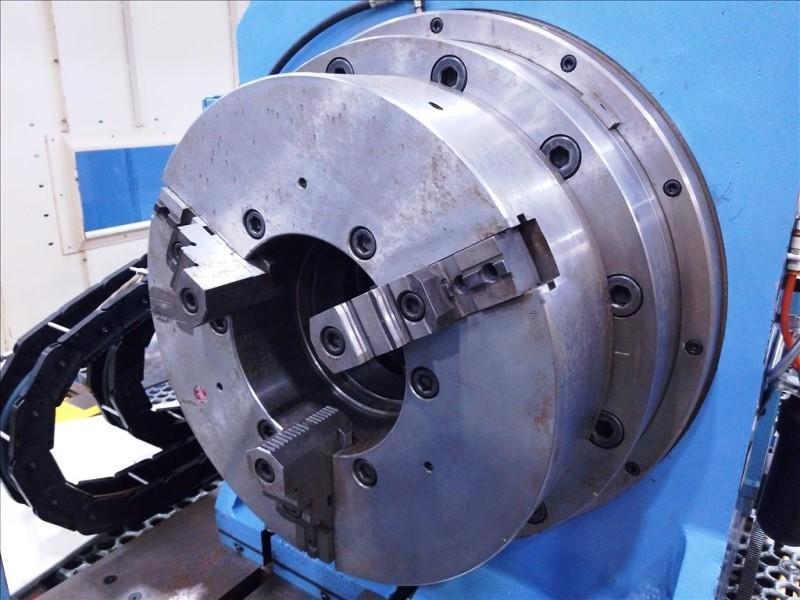

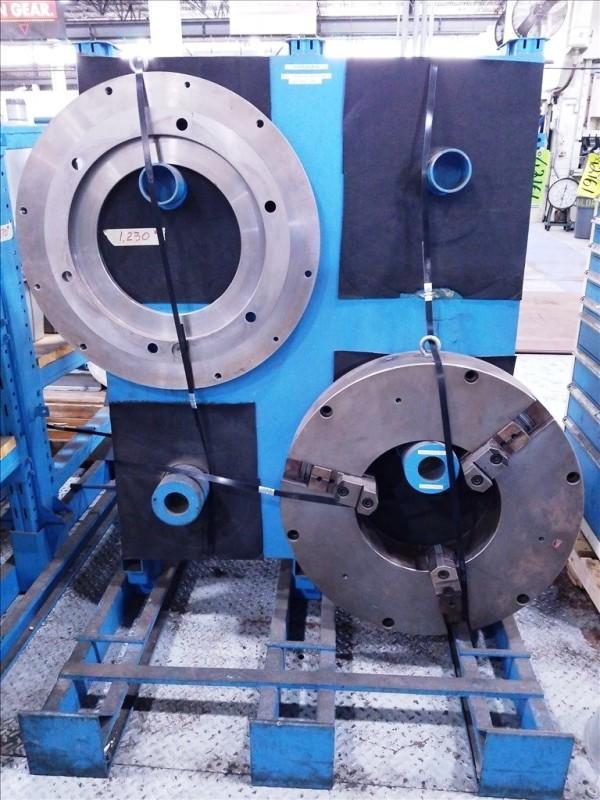

35.5" 3-Jaw Chuck w/ 17" Hole & Adapter Plate

25" 3-Jaw Chuck w/ 11" Hole; Adapter Plate & Sleeve Insert

(2) Vibration Dampen Carriage Tube Mill Guides

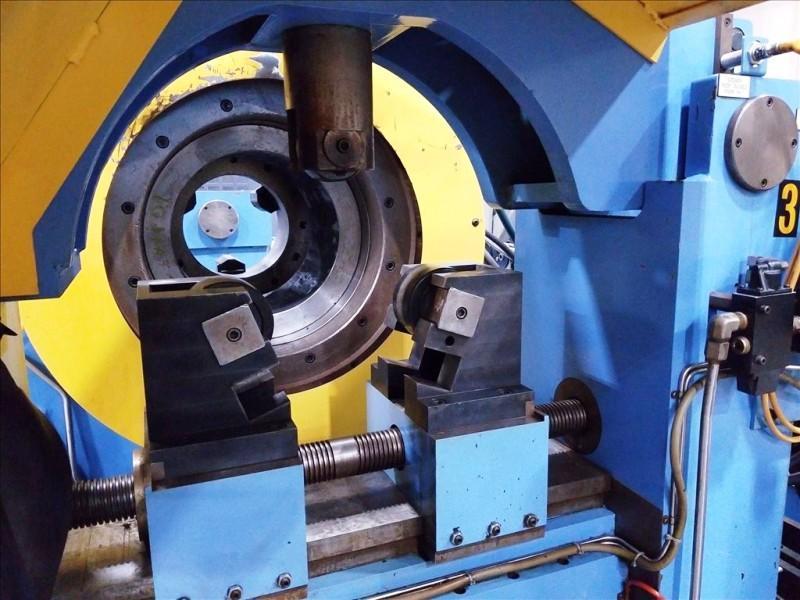

Work Holding Steady Rest w/ Air Assist

1500 PSI Fixed Displacement High Pressure Gear Pump

w/ AC Variable Frequency Drive; 117 GPM Max

500 Gal. Coolant System Tank Capacity

GE Fanuc Power Mate CNC Control

40 HP Spindle Motor

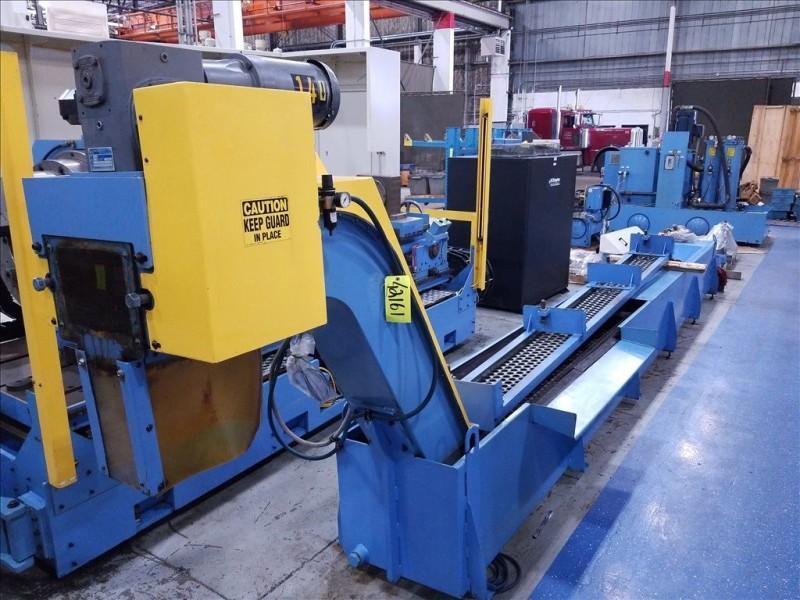

Chip Conveyor

Large Quantity of Various Size Drill Heads, Counterboring Heads

Carbide Inserts, Drill Tubes, Adapters, Connectors,

Driver Mounts, Split Clamps & Seal Rings, Bearings, Misc. Spares
