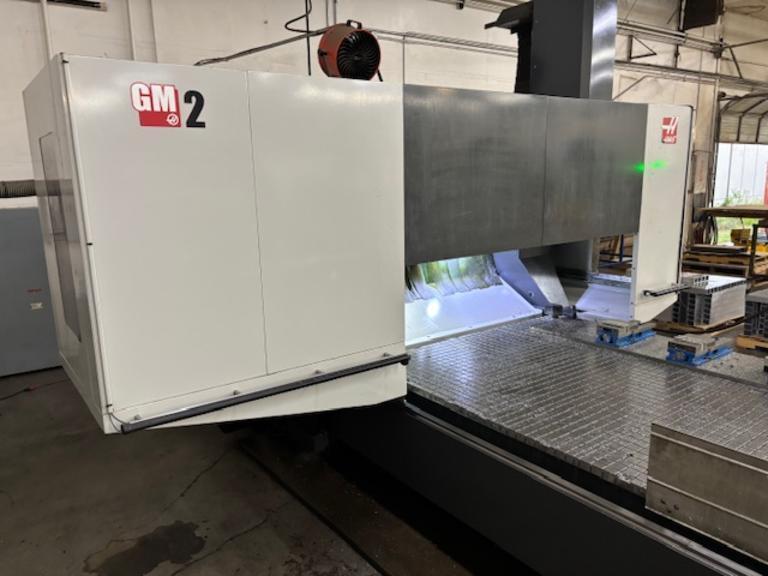

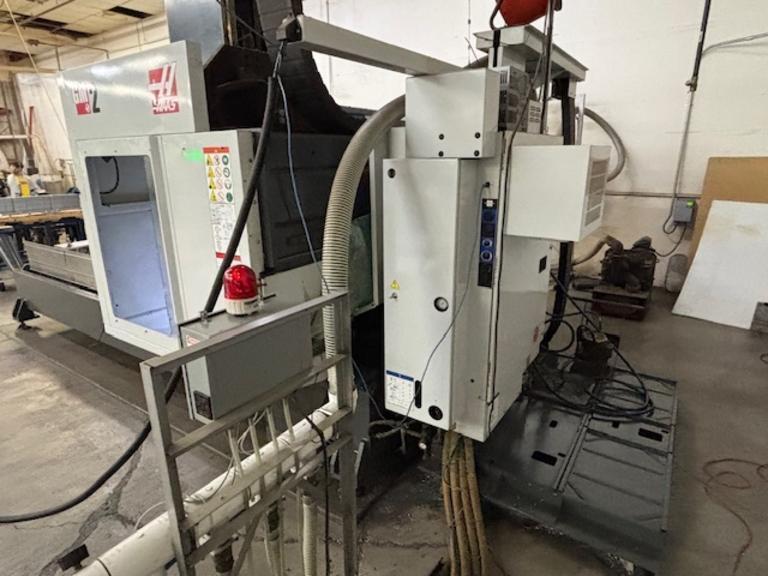

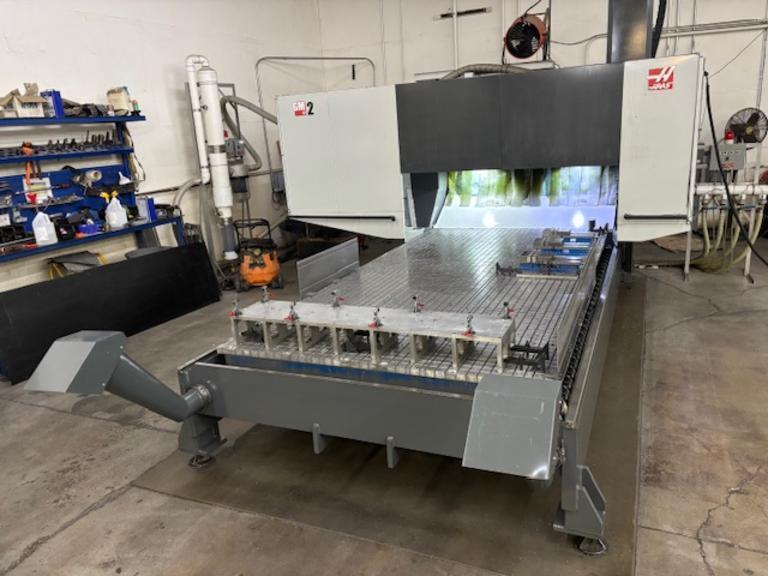

HAAS GM-2 CNC VERTICAL GANTRY MILL

New 2020

EQUIPPED WITH:

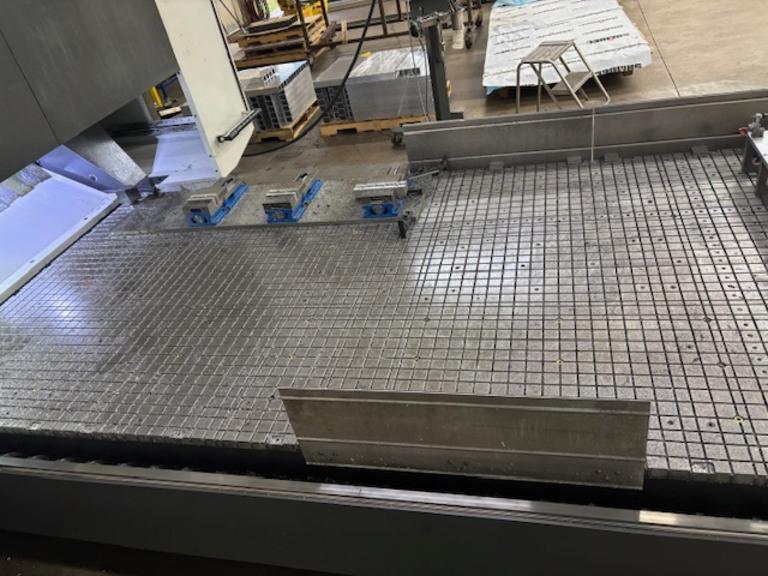

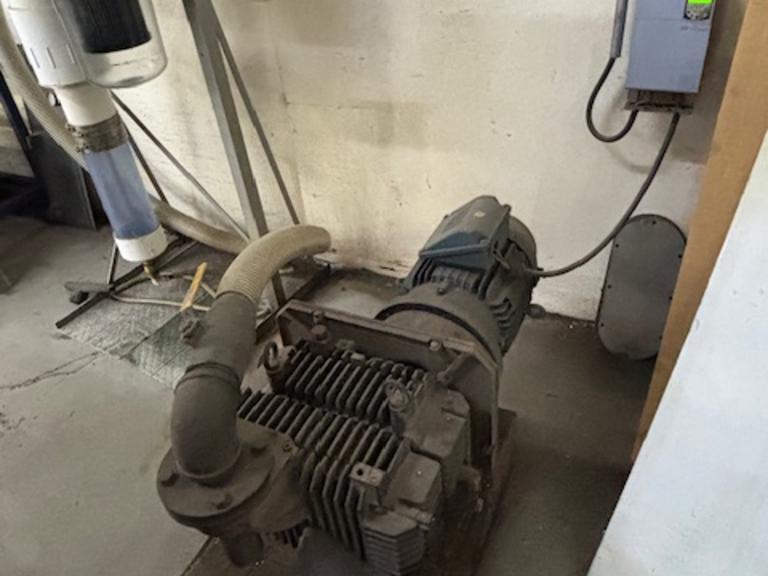

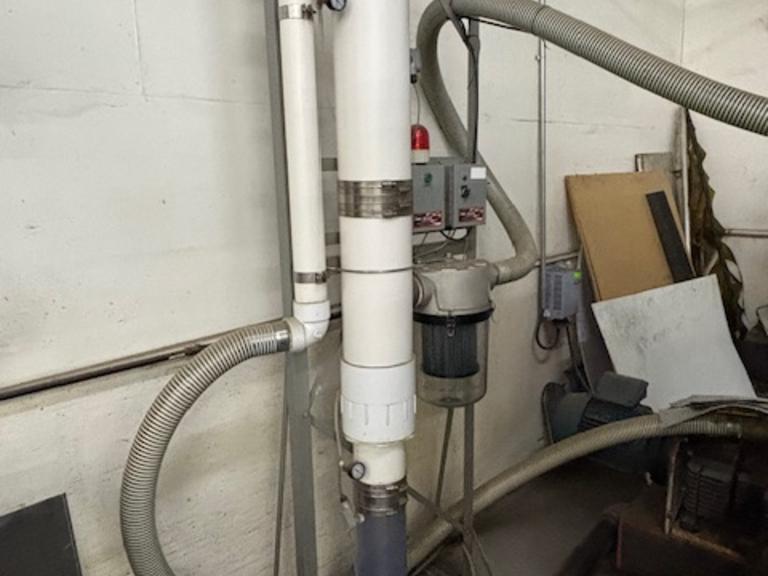

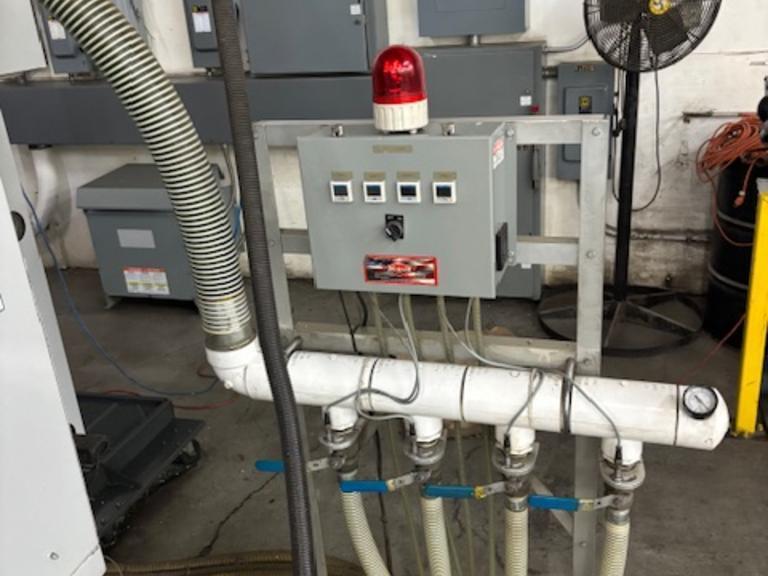

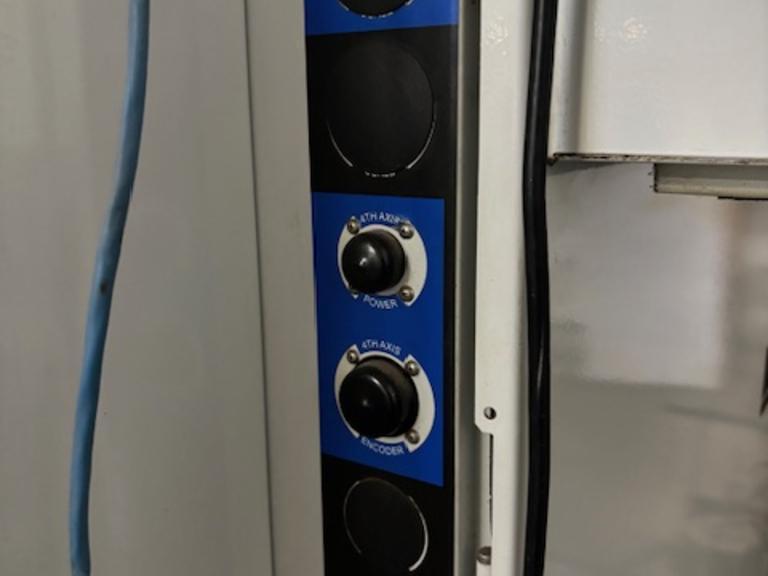

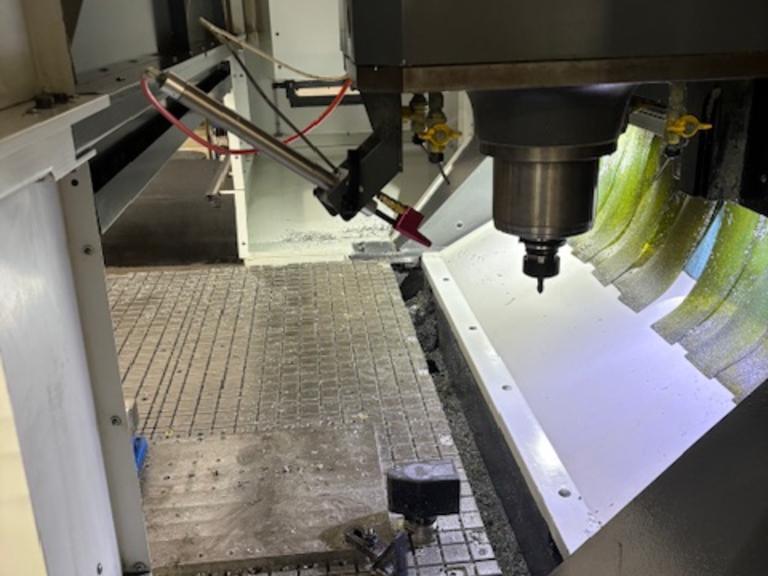

Haas Next Generation CNC Control, 15,000 Max RPM Spindle Speed, 30 Station Automatic Tool Changer, Vacuum Table and Vacuum Pump System, 4th Axis Brushless Drive, Thru-Spindle Coolant (300 PSI), Thru-Tool Air Blast, Haas Wireless Probing System with Renishaw Tool and Parts Probes, High Speed Machining, 1GB Memory, Chip Auger, Cabinet Cooler, Ethernet, Second Home Position, Remote Jog Handwheel, Rigid Tapping, Wifi Connect, Auto Air Gun, Flood Coolant System, Coordinate Rotation and Scaling, Machine will Come with Original Aluminum Table in addition to the Vacuum Table.

SPECIFICATIONS:

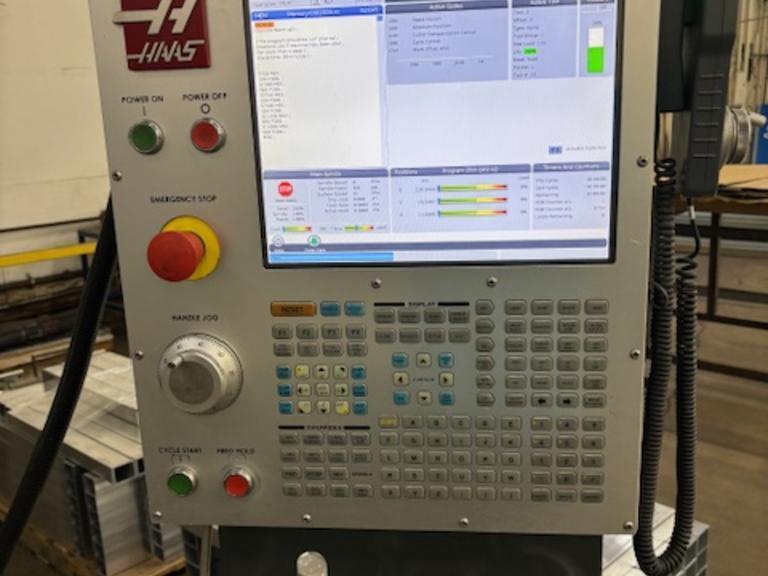

Control                                          Haas Next Generation CNC Control
Table Size                                      144" x 72" x1"
Max. Table Load                            6,000 Lbs.
Machine Travels                            145" x 87.5" x 22"
Distance Spindle to Table             4" - 26"
Width Between Columns              75"
Spindle Taper                                CT 40
Spindle Speeds                             15,000 RPM
Cutting Feed Rate X/YXZ              Max. 472 IPM
Rapid Traverse Rate X/Y/Z           472/1,889/1.181 IPM
Tool Changeer Capacity               30 Station Automatic Tool Changer
Max. Tool Weight                         12 Lbs.
Max. Tool Diameter/Length         2.5"/3.5" Diameter x 11" Length
Spindle Drive Motor                     30 HP Vector Spindle Drive
Spindle Drive System                    Inline Direct-Drive
Electrics                                        220 Volt, 3-Phase
Approx. Dimensions                      226" x 143" x109" H
Approx. Weight                             21,000 Lbs.
