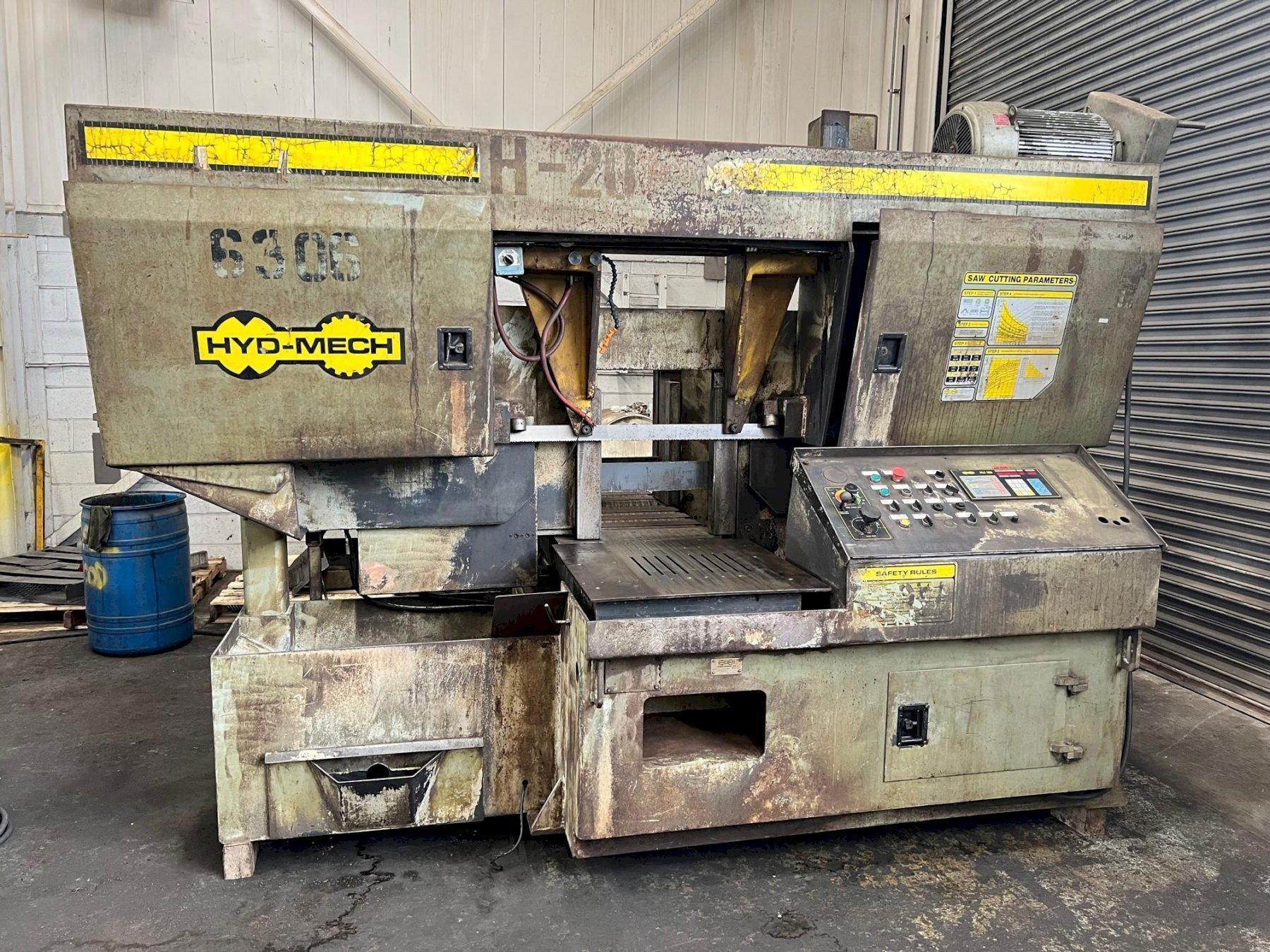

HYDMECH H-20A AUTOMATIC FEED HORIZONTAL BAND SAW

Manufacturer

Not provided

Model

H-20A

Year

1993

Stock #

18048

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

HYDMECH H-20A AUTOMATIC FEED HORIZONTAL BAND SAW
New 1993


Equipped with:

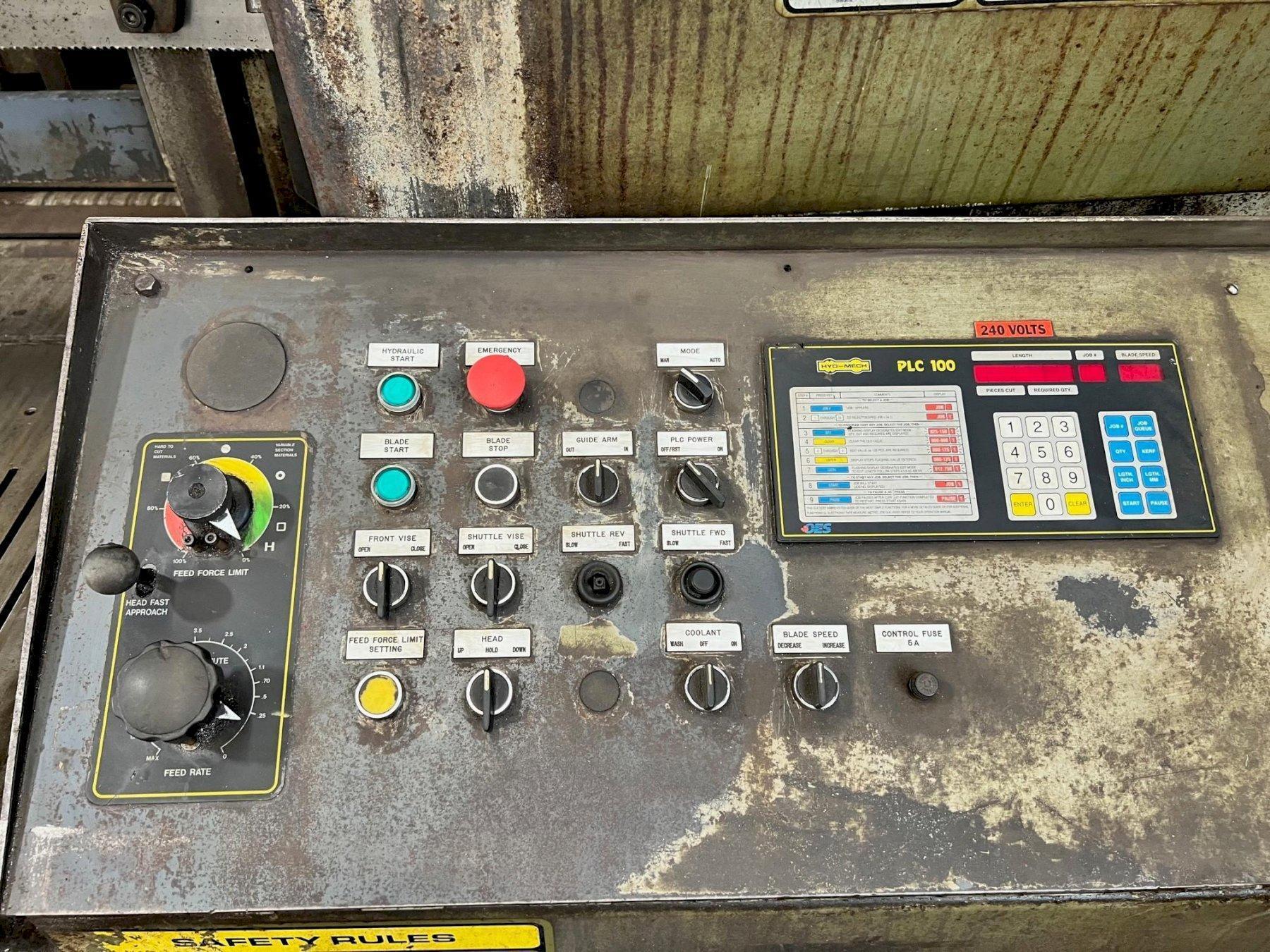

PLC100 Control - holds up to 29 jobs with length & piece counter and the ability to run up to 9 jobs in queue with blade speed readout
Full capacity overhead bundling
Manual / automatic mode
Head height limit switch setting
Blade break switch
Coolant wash down hose
Powered blade speed change
Carbide guides
Flood coolant
Powered blade chip brush
Positive downfeed


Specifications:
Max. cutting cap. 90 deg, round: 20”
Max. cutting cap. 90 deg, square: 20” x 20”
Blade dimensions: 22’2” x 2” x .063
Blade guides: Carbide
Guide arm (manual / powered): Powered
Blade speeds: 40-300 FPM
Number of speeds: Infinite
Blade motor: 10 HP
Blade drive type: Motor to gearbox
Blade tension type: Powered
Blade wheel size: 27”
Hydraulic motor: 3 HP
Hydraulic Tank Capacity: 9 gallons
Coolant type: Flood
Coolant tank capacity: 10.5 gallons
Maximum feed length: 36”
Number of multi indexes: Infinite
Table height: 31”
Maximum weight load: 15,000 lbs
Vise type: Hydraulic
Voltage: 220 volt 3 phase
Dimensions: 140” x 95” x 94”
Weight: 12,500 lbs
