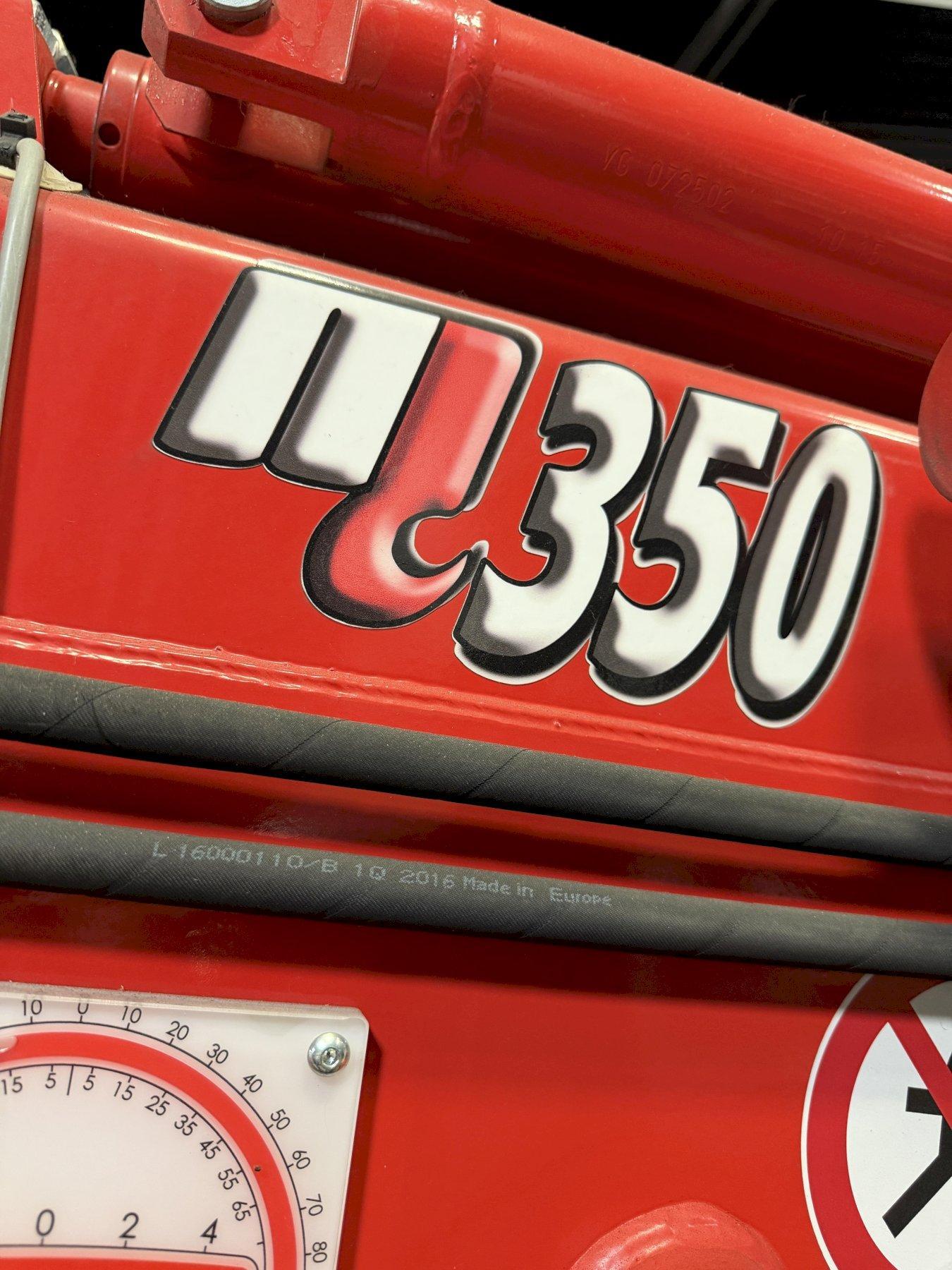

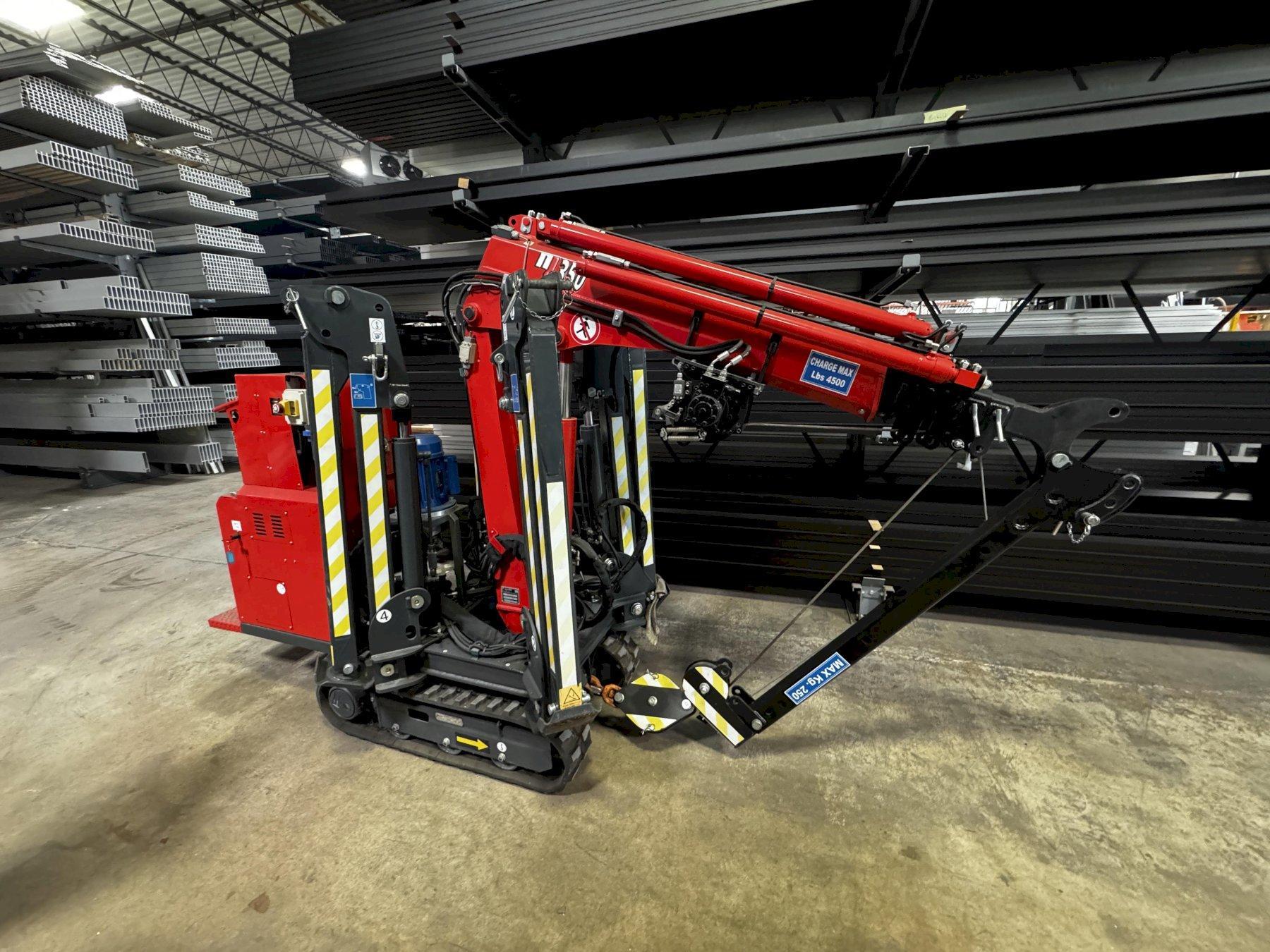

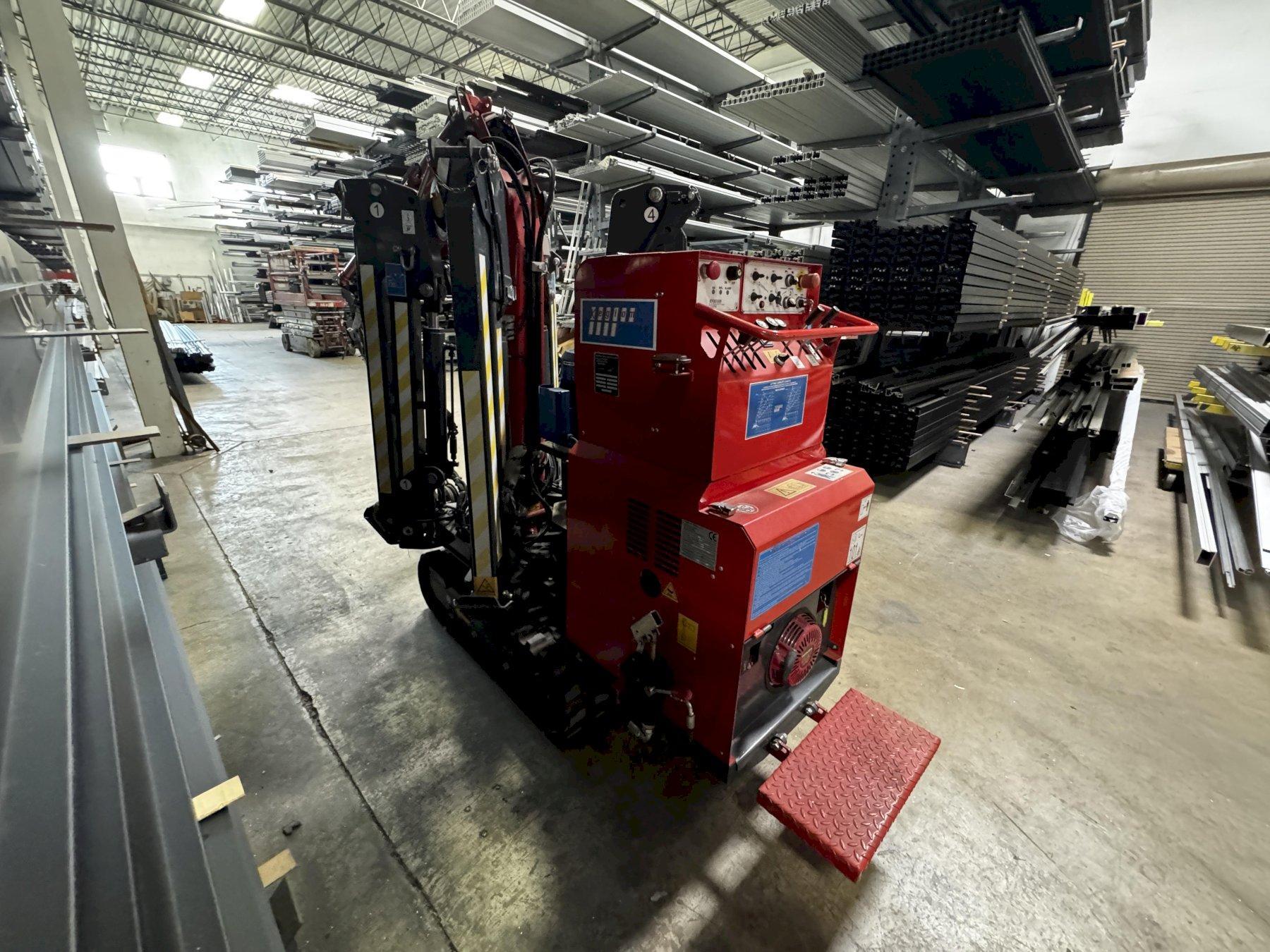

KEGIOM 350-4 SPIDER GAS POWERED COMPACT TELESCOPIC CRAWLER CRANE

New 2016

191.1 Hours

, Honda GX690 Gas, (4) Hydraulic Stabilizers, Next Hydraulics Maxilift 4,500-lbs. Capacity Model 380.4 Telescopic Crane SN 27476, Class HC1-B2, 6-Section Boom, , Man Basket.

•      Crane Capacity: 2,050 kg (4,519 lbs.) maximum

•      Platform Capacity: 120 kg (265 lbs.), rated for 1 person (80 kg) plus 40 kg of tools/equipment

•      Maximum Working Height: 10 m (~33 ft)

•      Maximum Working Radius: 8 m (~26 ft)

•      Boom: 6-section telescopic, full hydraulic

•      Rotation: 360° continuous

•      Stabilizers: (4) independent hydraulic outriggers

•      Self-Loading Feature: Loads and unloads itself onto a 3.5-ton transport truck using its own stabilizers, no auxiliary crane or ramp required

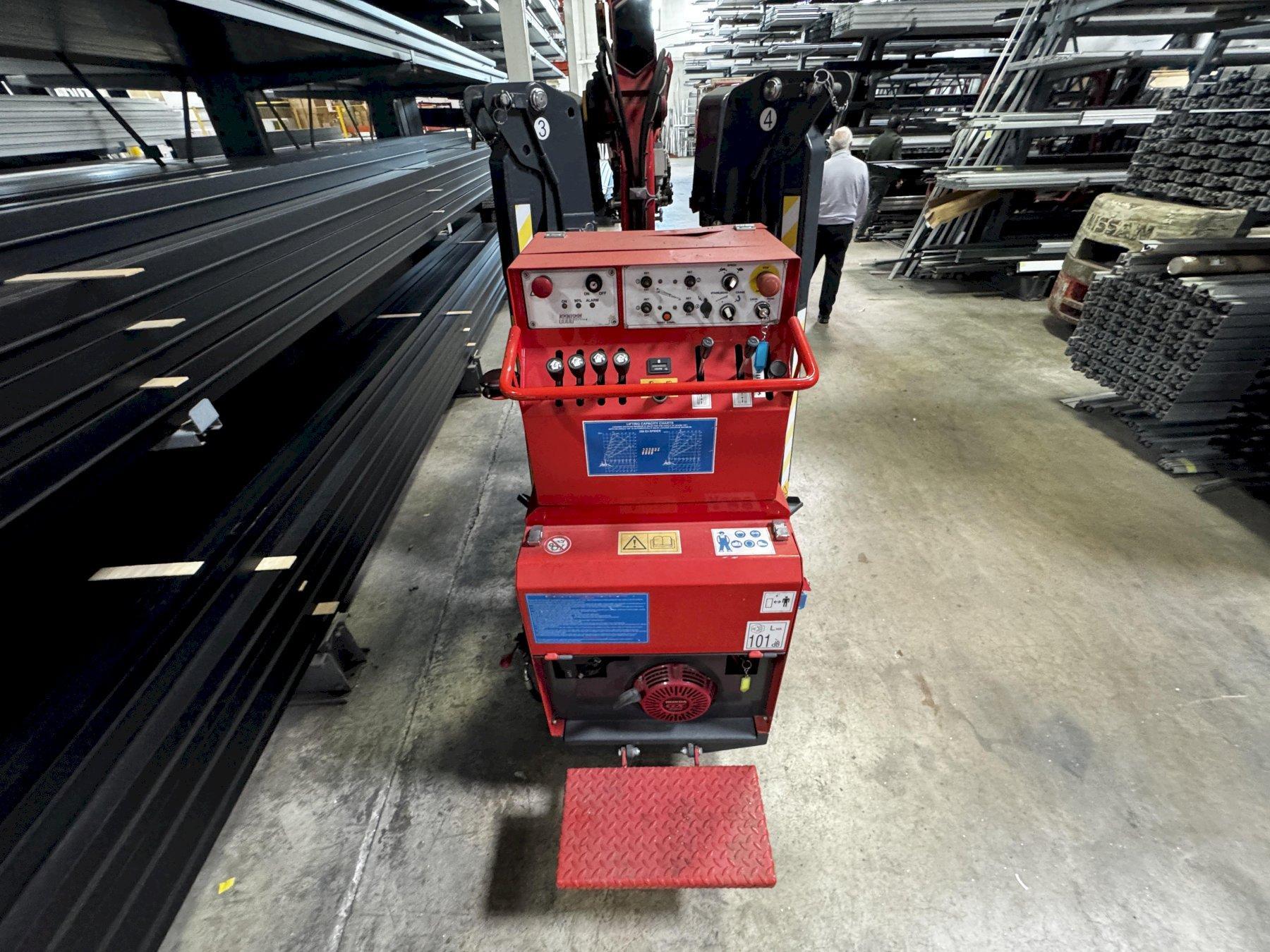

•      Power: Honda GX-Series gas engine with electric start, plus 220V / 60Hz auxiliary electric power input

•      Hydraulic System: 220 bar (3,191 PSI) maximum operating pressure

•      Maximum Operating Wind Speed: 12.5 m/s (~28 mph)

•      Maximum Frame Inclination: 1°

•      Tracks: Rubber, 1,222 x 180 x 20 mm

•      Unit Weight: 1,400 kg (3,086 lbs.)

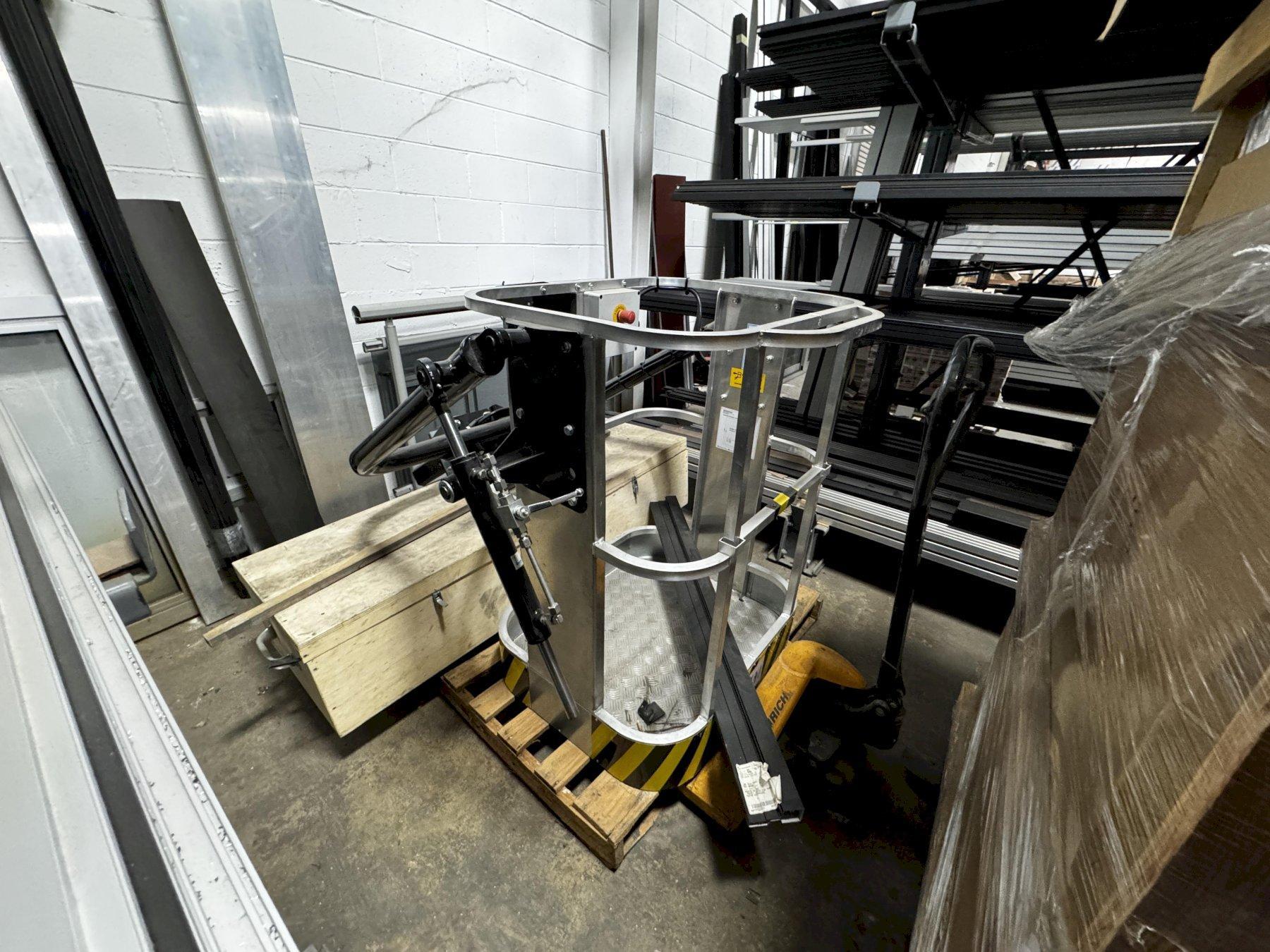

•      Included Attachments: Man basket / personnel work platform

•      Country of Origin: Ovada, Italy

•      Ideal Applications: Glass and curtainwall installation, industrial maintenance, structural steel placement, indoor lifting where access is restricted, mechanical contracting, marine, boutique construction
