Equipped With

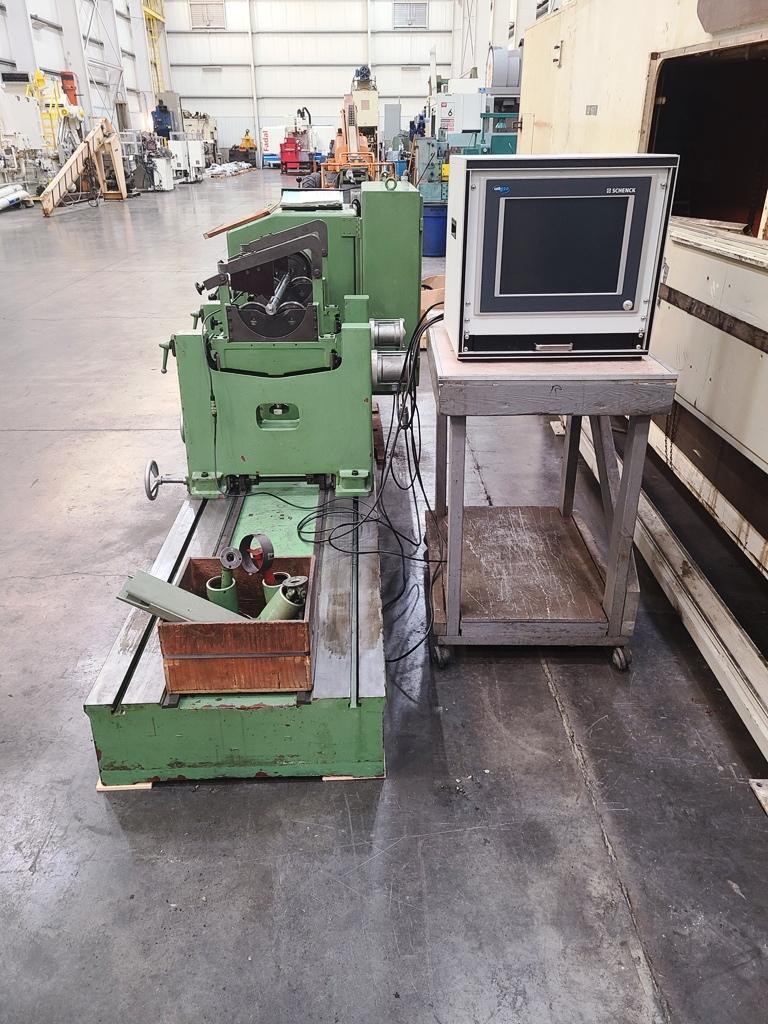

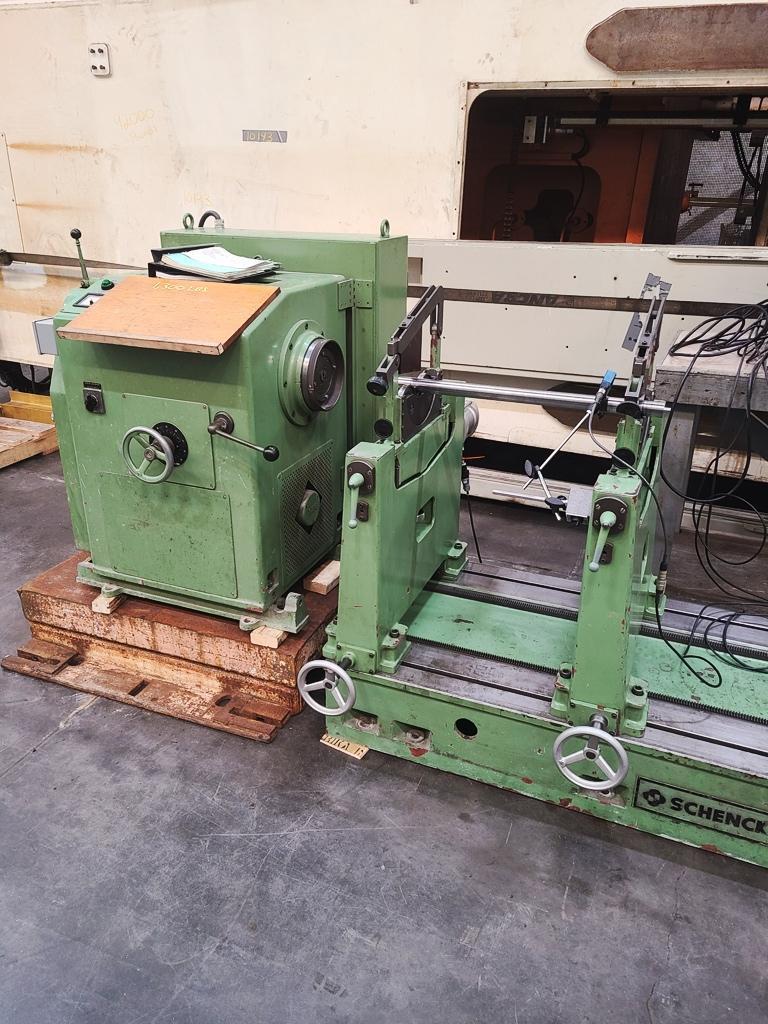

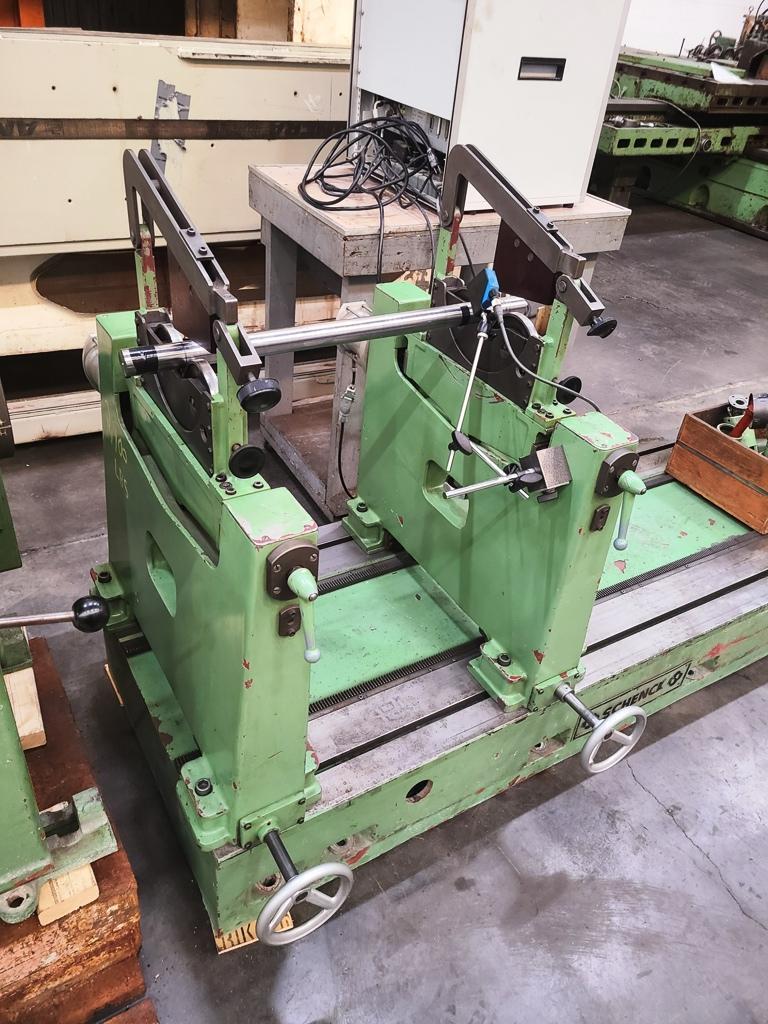

SCHENCK MODEL R54UV BALANCER

New 1965/2014

 SPECIFICATIONS:

Soft Bearing Type Displacement Balancer

Approximate Weight Capacity: 2,000 Lbs.

Overall Stand Length: 79"

Distance From Top of Stand to Center of Part: 28" (This can vary slightly due to height adjustment in the bearings)

Drive Unit Speeds: 4 Gear Ranges in RPM

400 – 1200

750 – 2200

1300 – 3860

2150 – 6500

EQUIPPED WITH:

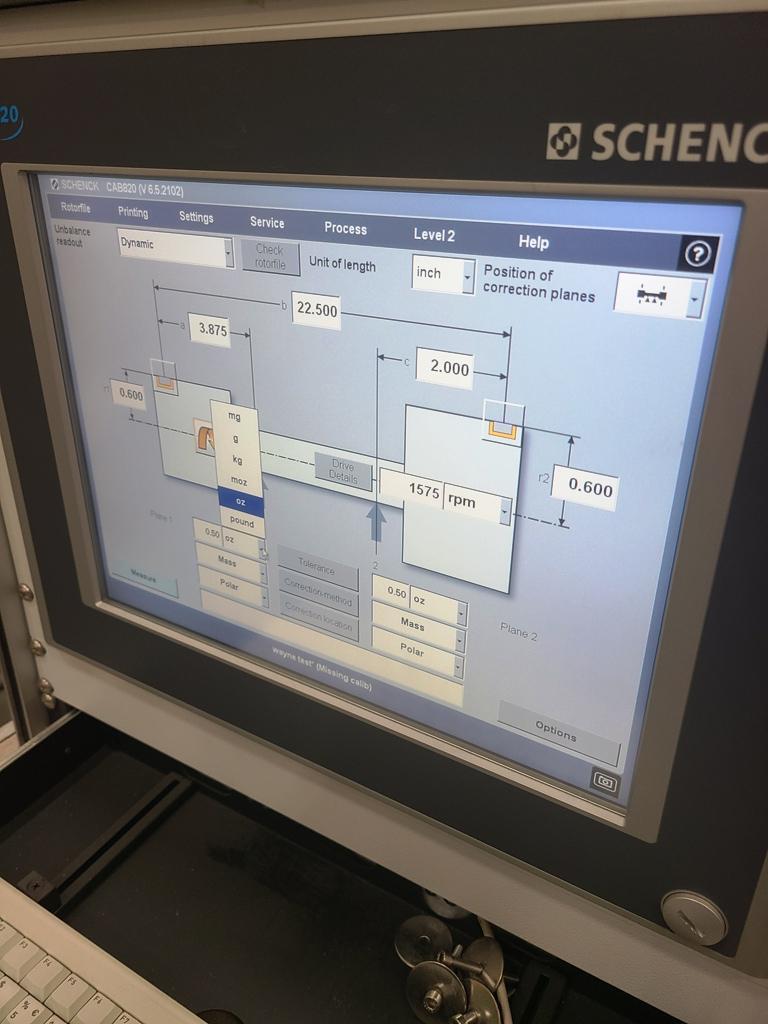

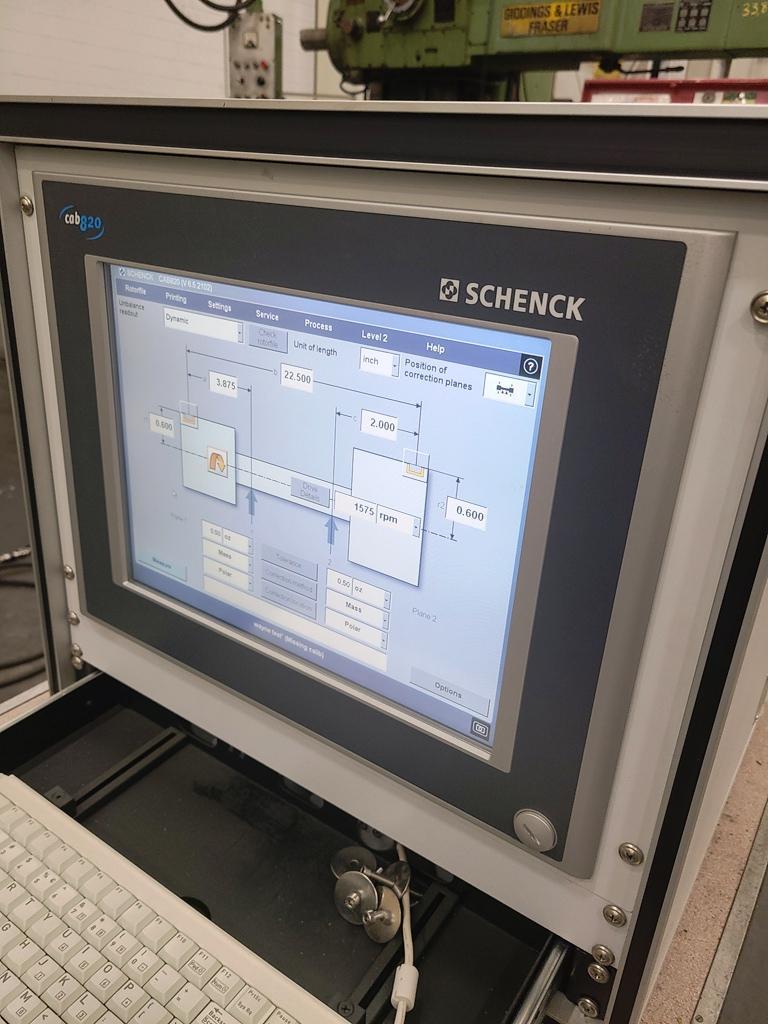

CAB 820 Control

Serial Number: 4100221985

Model: CAB 820

Year: 2014

Options For:

Index Balancing

Single Compensation (Biasing)

Key Compensation

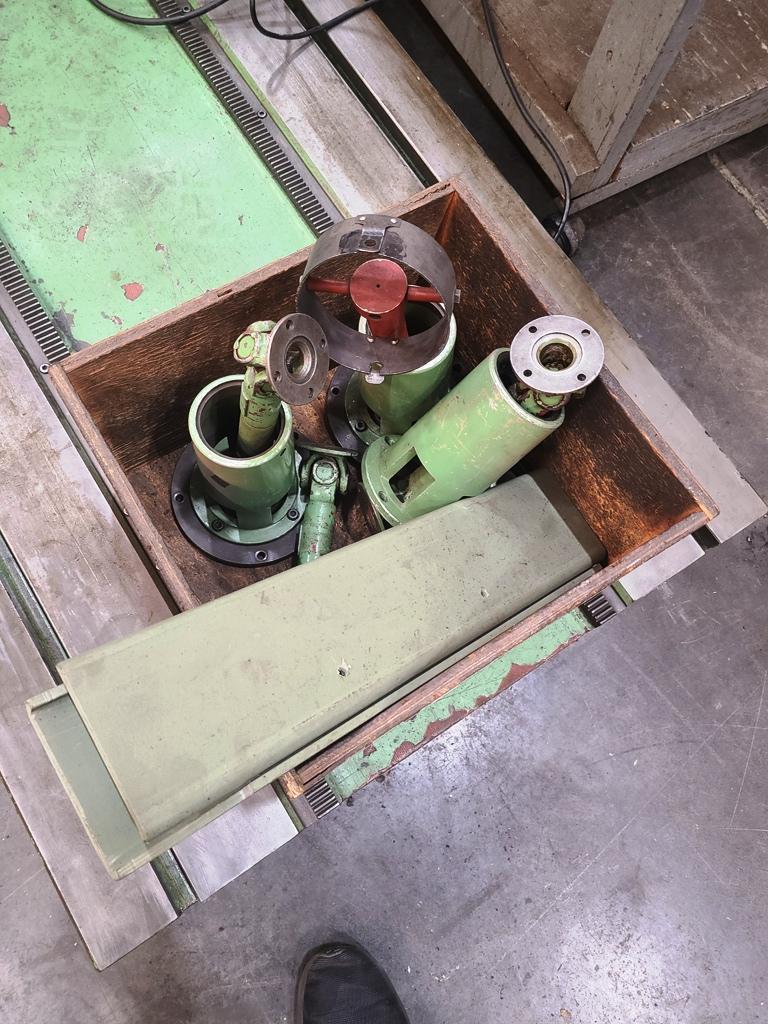

(4) Universal Drive Arms

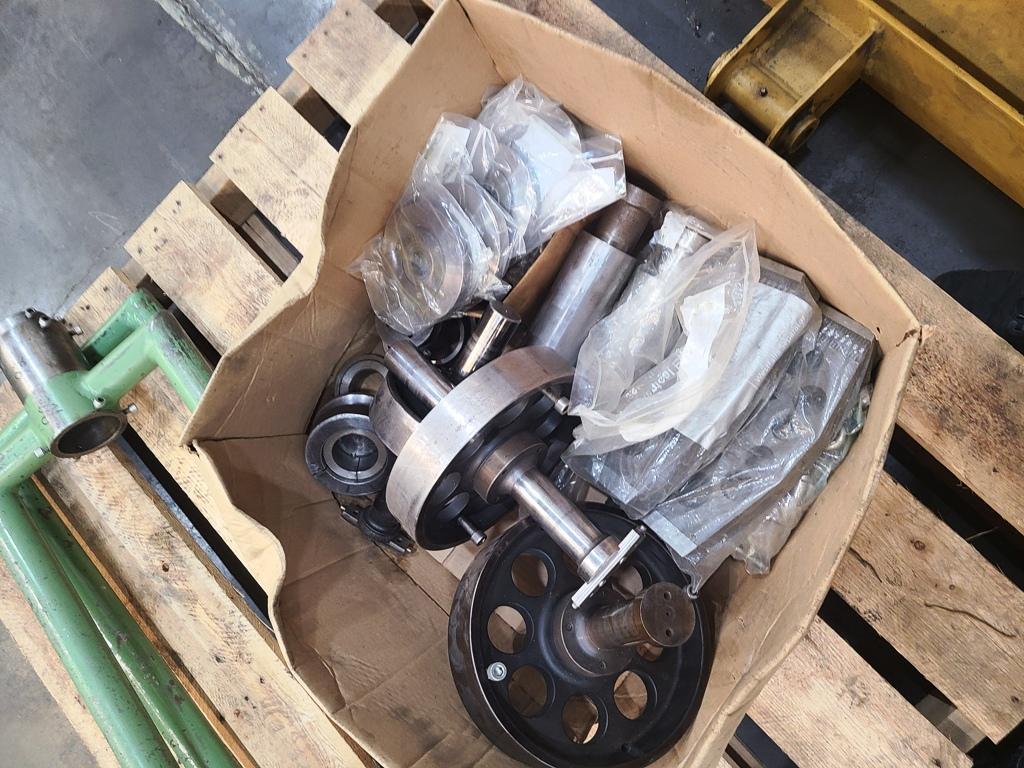

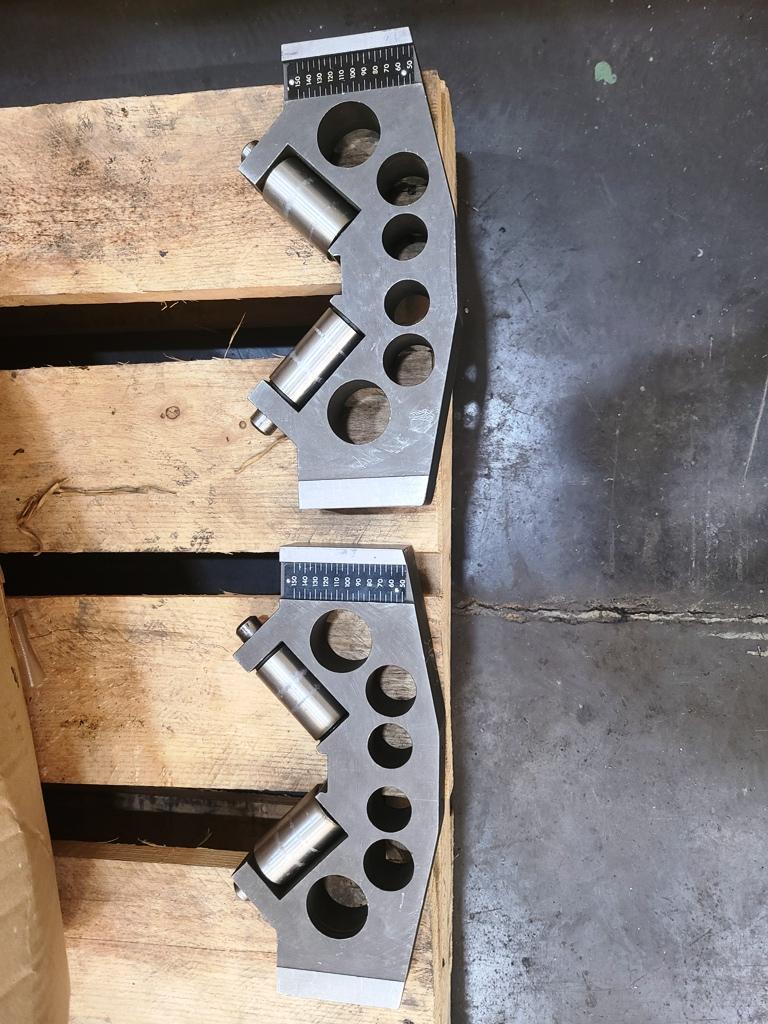

Additional Stand Bearings

Original Manual

Updated Control Manual

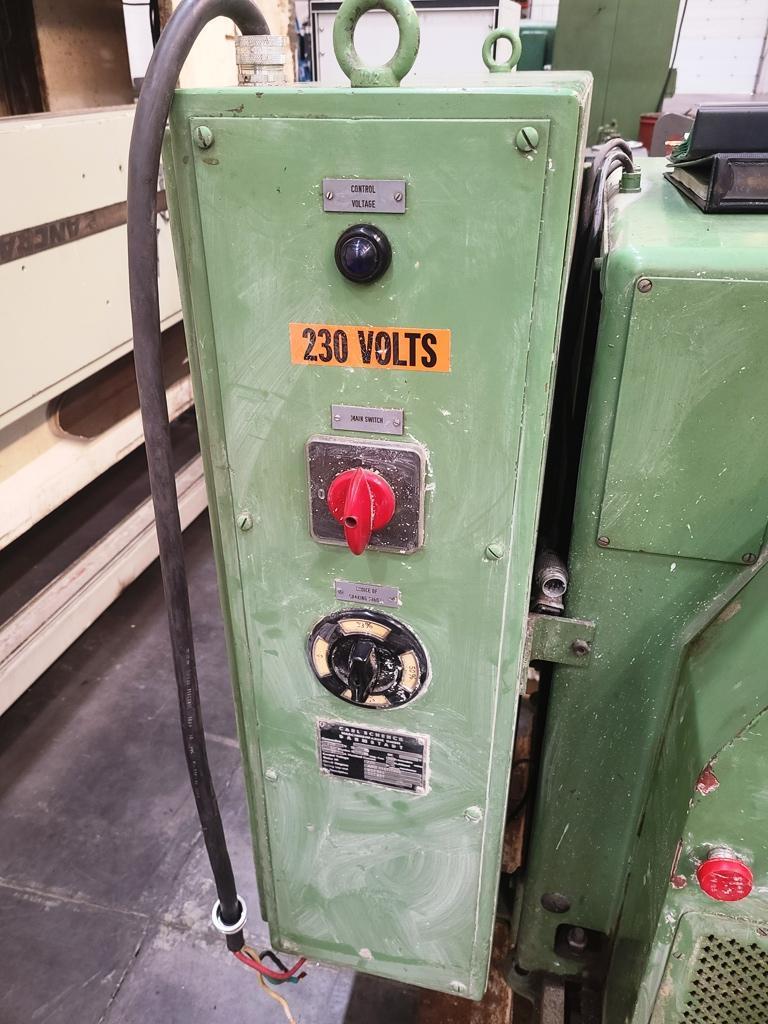

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size:

Control: 20" LR x 20" FB x 20" High

Stand: 79" LR x 45" FB x 48" High x 2,400 Lbs.

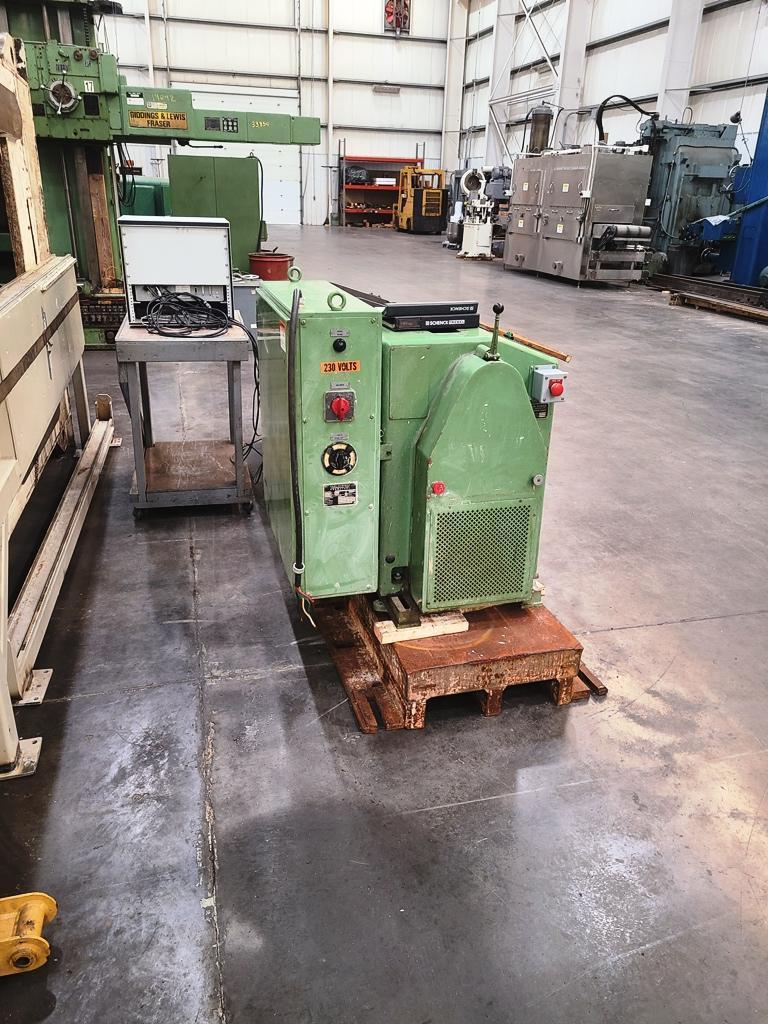

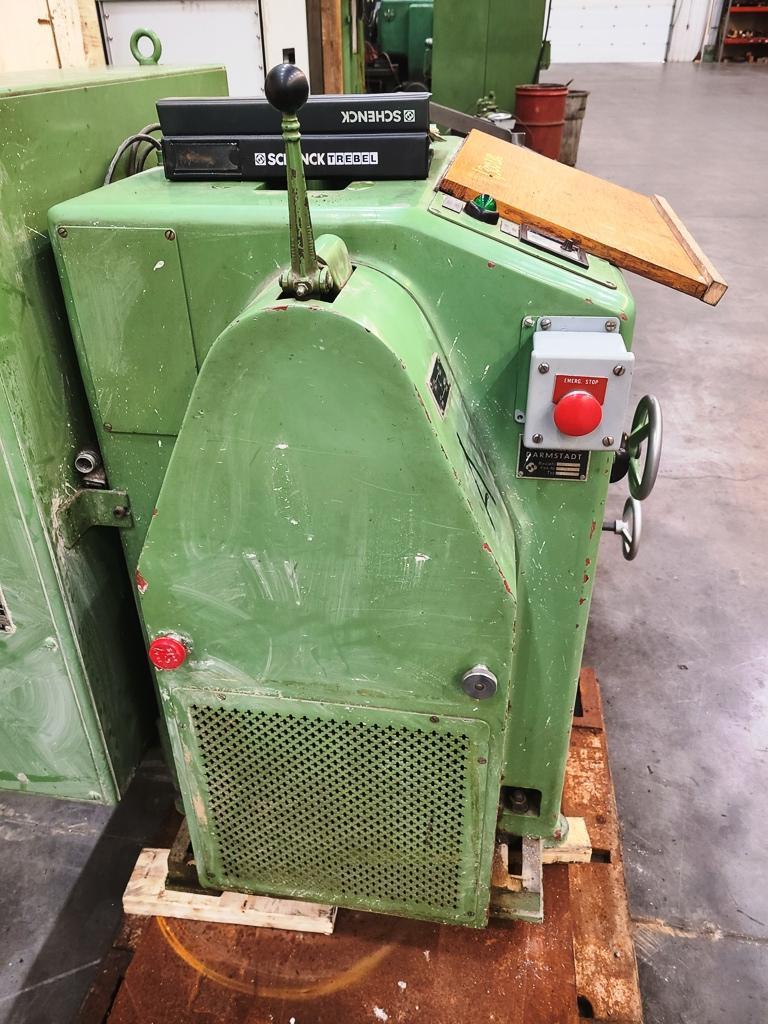

Drive: 40" LR x 43" FB x 48" High x 1,300 Lbs.
